LUVISION Dual WiFi PTZ Surveillance System with LED Monitor, 4MP Solar PTZ Surveillance Camera, Microphone, Siren, Smart Night Vision

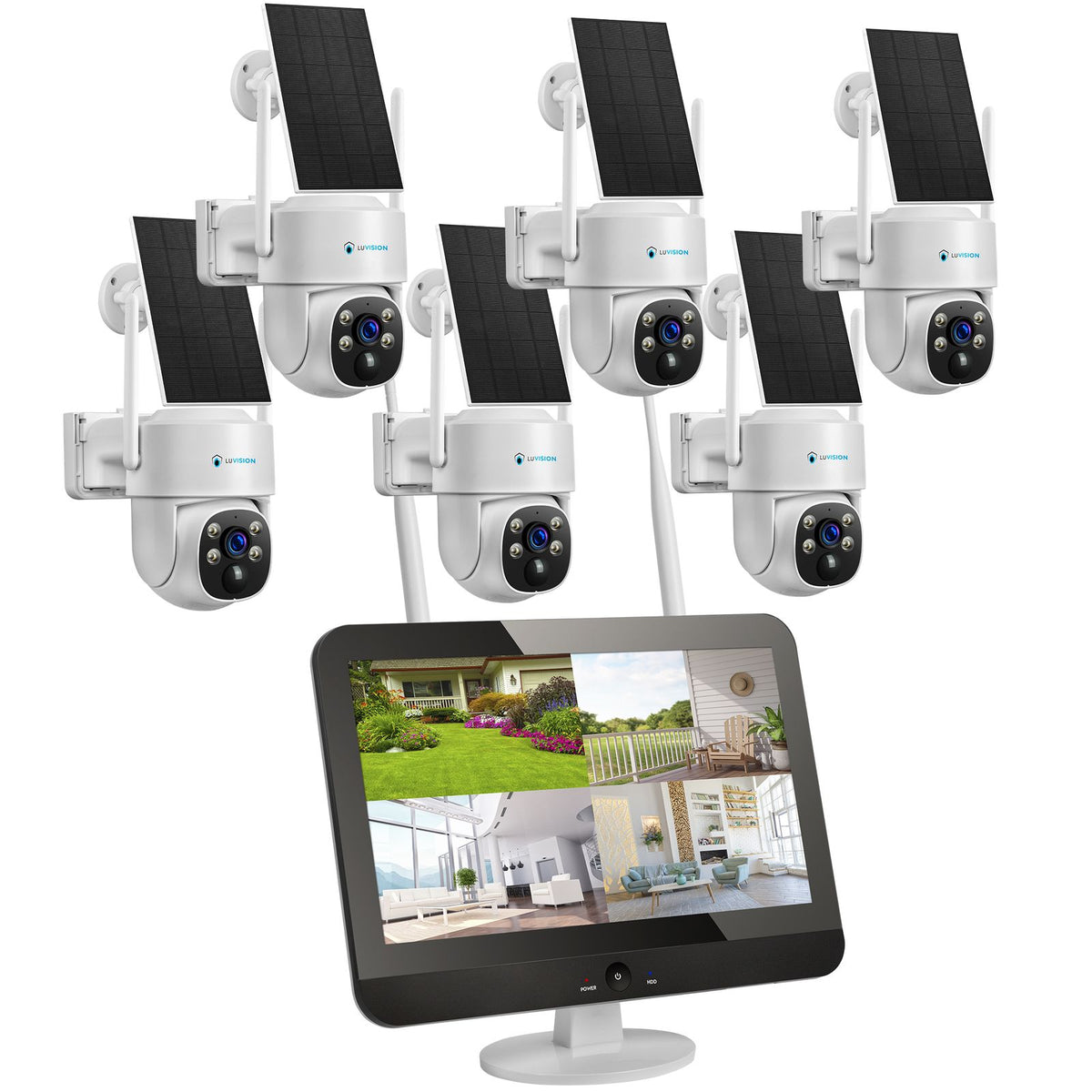

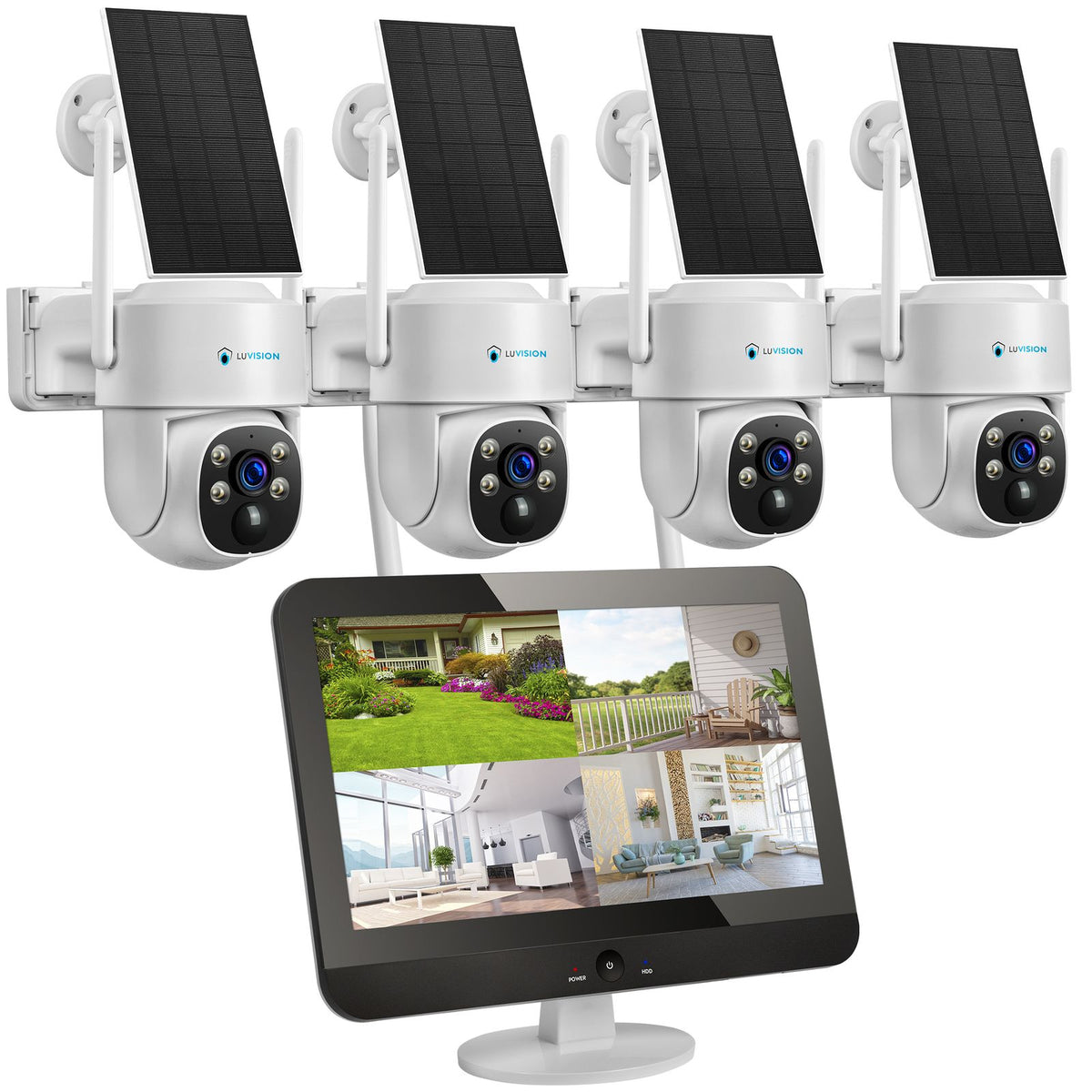

LUVISION WLAN Surveillance System with 12.5" Dual LED Monitor NVR and 4MP WLAN PTZ Surveillance Cameras with Solar Panels

High-resolution WLAN surveillance system with 12.5" LED monitor and 4MP cameras for indoor and outdoor use. Receive instant high-resolution 4MP recordings thanks to the PIR sensor as soon as motion is detected. The PTZ cameras can be panned horizontally and vertically, covering the largest possible surveillance area. Control is via the included monitor or a connected smartphone.

The monitor's (NVR) German-language setup assistant guides you intuitively through the camera setup.

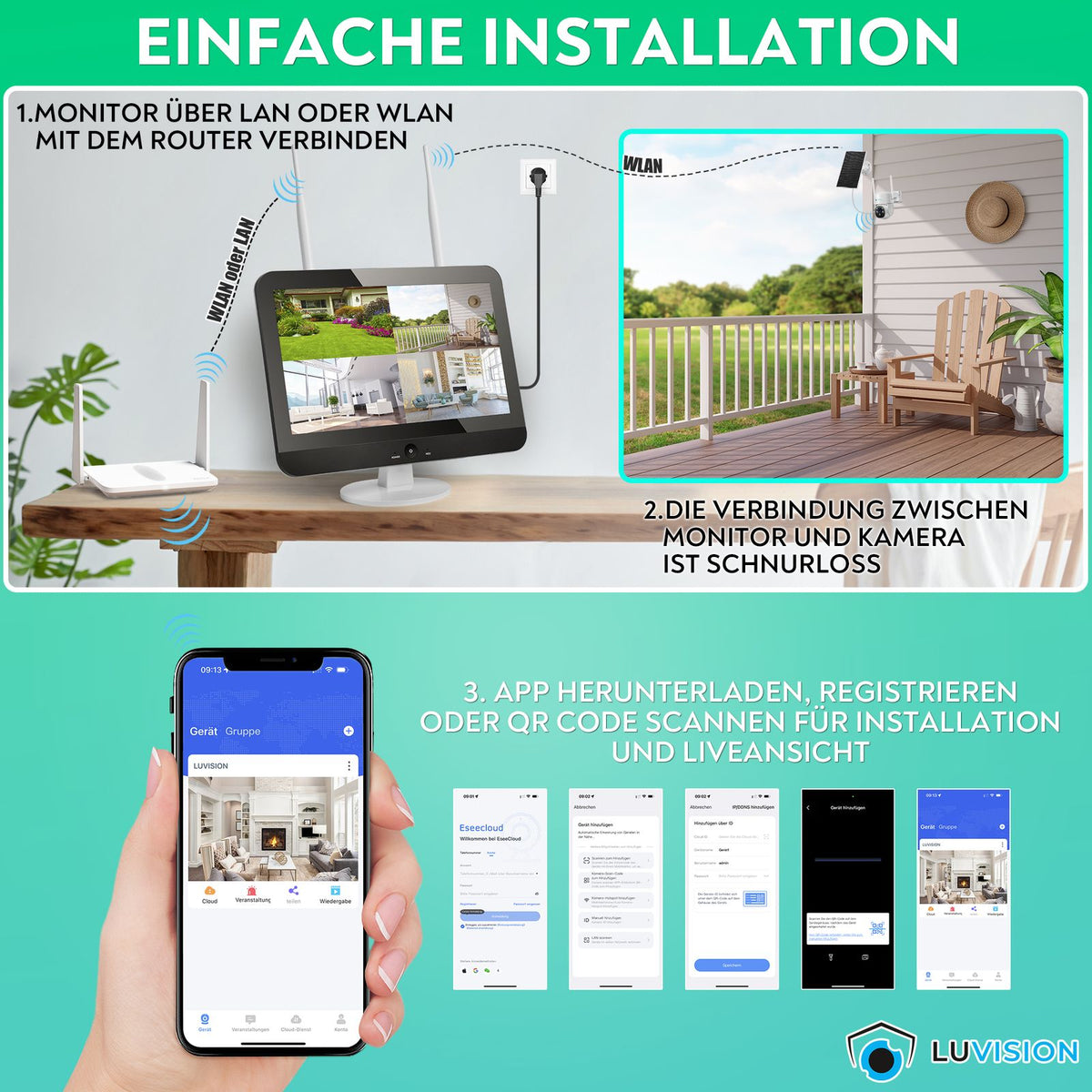

Connect the monitor (NVR) to an internet router via LAN or WLAN to access the system from anywhere.

With the free German-language "EseeCloud" app for iOS and Android, you have live access to all connected cameras.

Alternatively, transmission can be done on any PC/iMac via client software.
Receive push notifications or emails directly to your smartphone when motion is detected.

You can receive precise AI notifications and recordings that indicate whether motion was triggered by a person, car, or animal.

The NVR can also emit an audible signal when human motion is detected in front of the camera.

Recording and notification occur upon motion.

Recordings can be stored in the NVR on a separately available HDD hard drive or a microSD card.

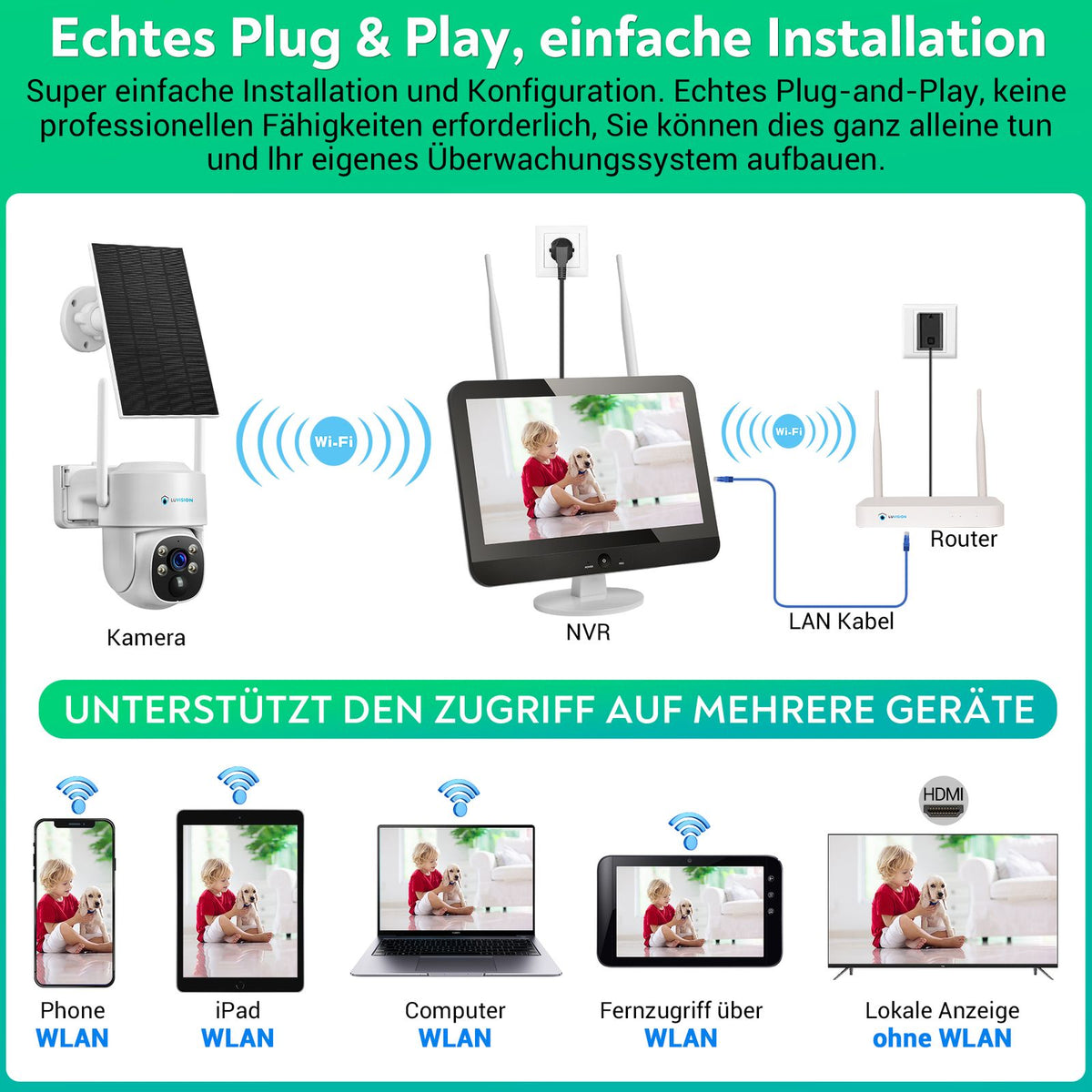

The system is ready for immediate use. The monitor (NVR) requires a power connection and an internet connection (LAN or WLAN). The cameras must be installed within WLAN range of the router.

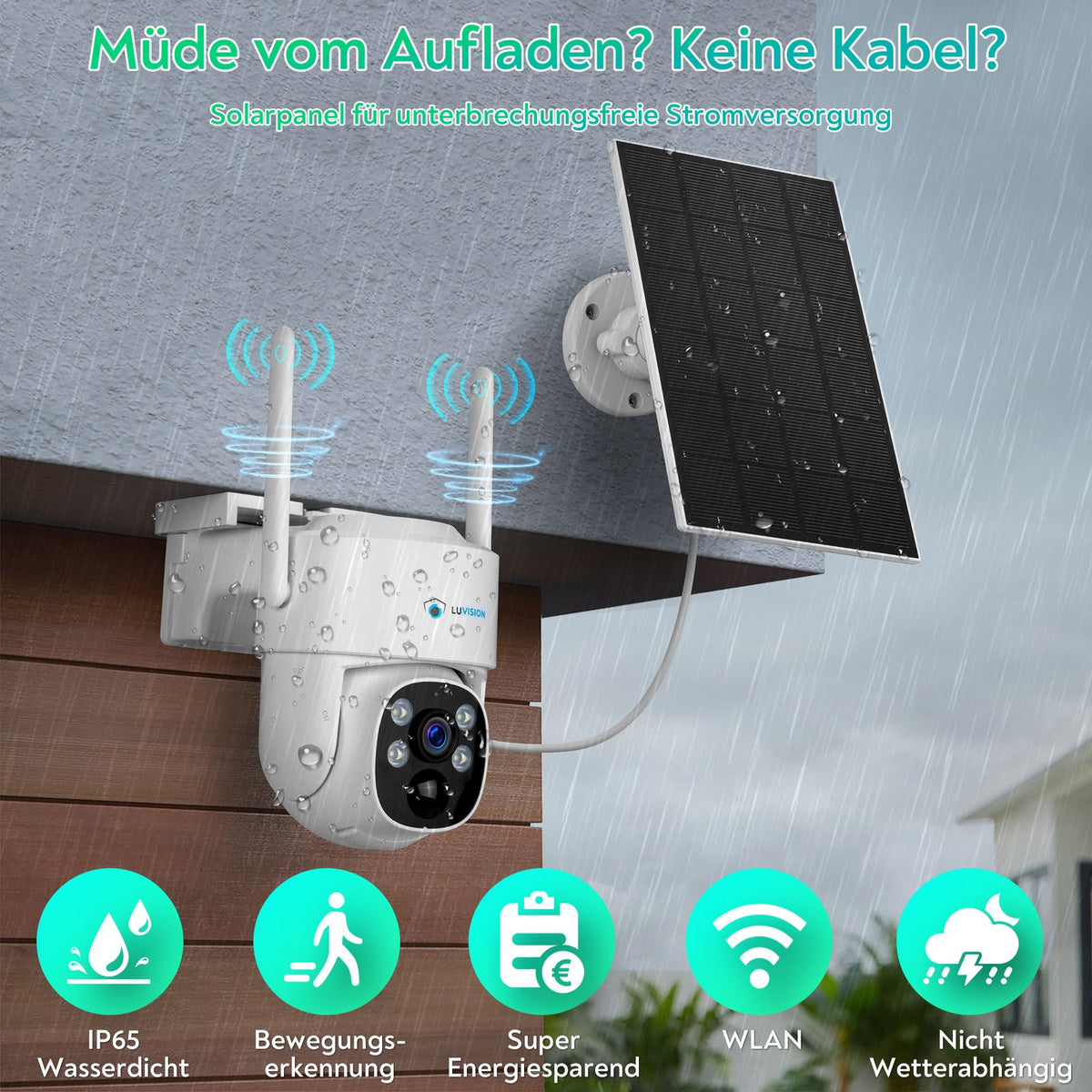

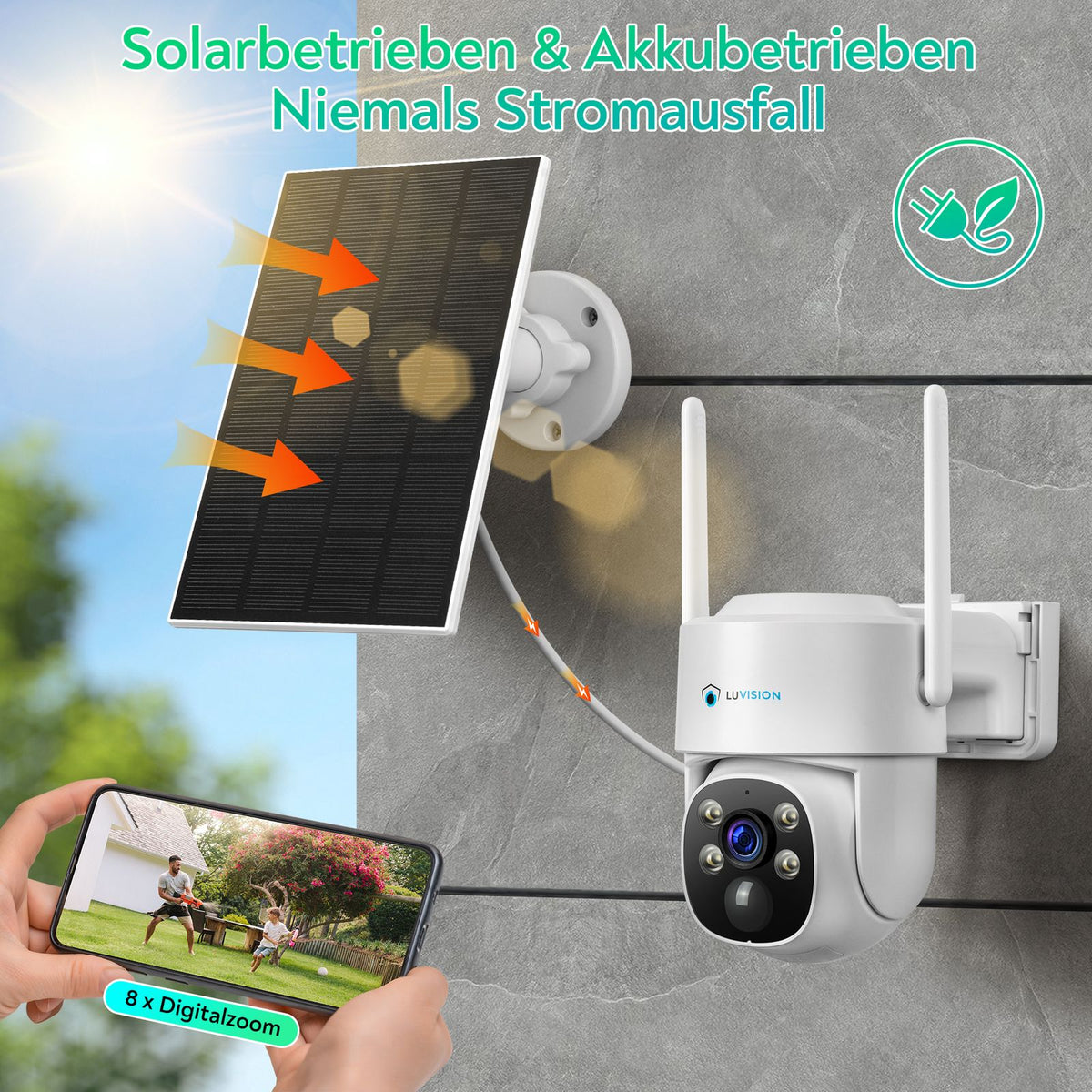

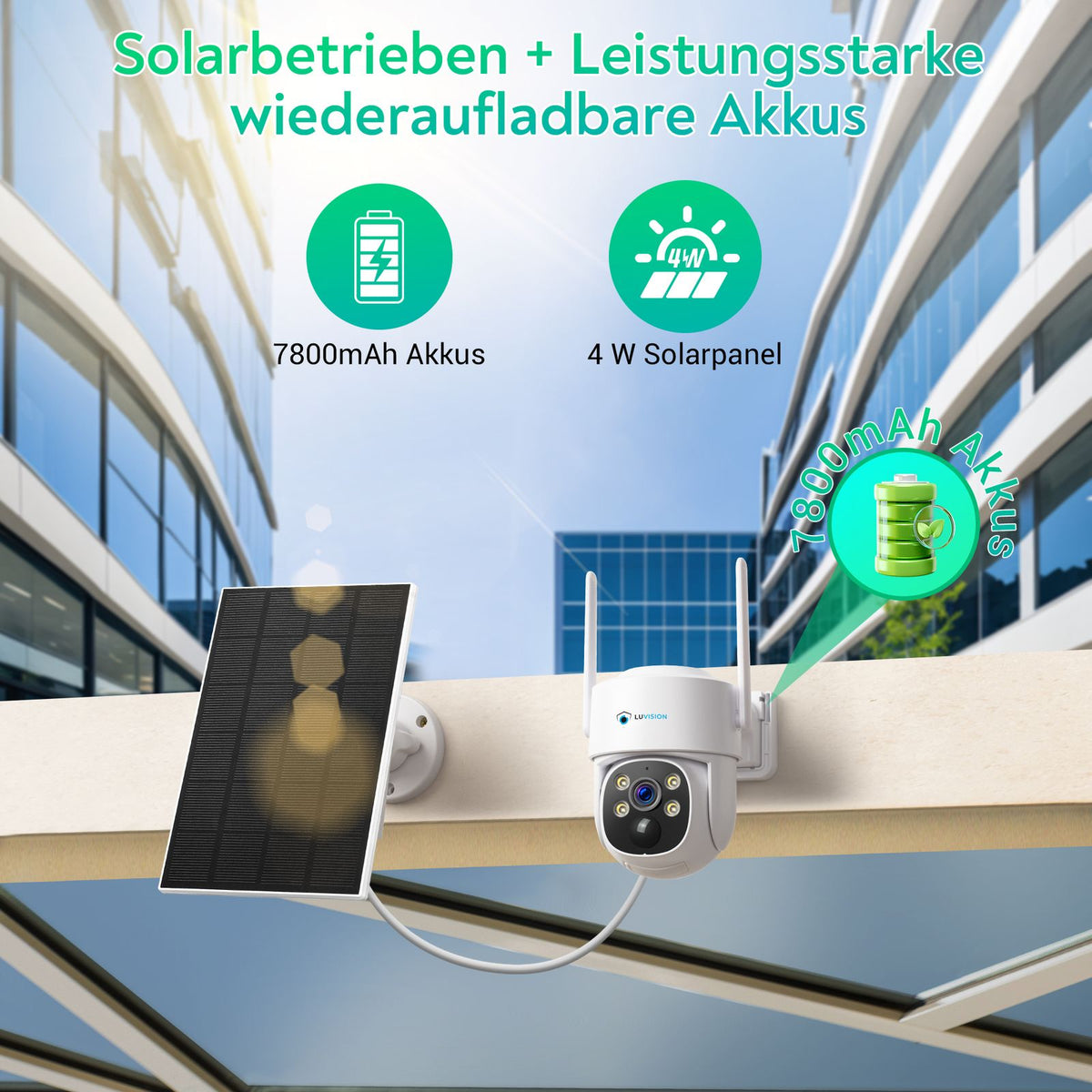

The powerful 7800 mAh batteries are charged via the included solar panel. This allows the cameras to operate autonomously from the power grid, providing additional flexibility in choosing the installation location.

You can expand the system to up to 10 LUVISION WLAN solar cameras.

New Generation with WLAN 6 for fast and stable WLAN with a long range of up to 800m

Features

- Waterproof swivel camera with built-in microphone and speaker
- WLAN Solar surveillance camera has a siren
- Wireless connection between monitor/NVR and 4MP cameras via WLAN
- Connect up to 10 cameras to the NVR monitor.
- Plug & Play commissioning in pre-configured system including auto pairing of cameras
- Camera recordings in 4MP resolution up to 2560*1440 pixels

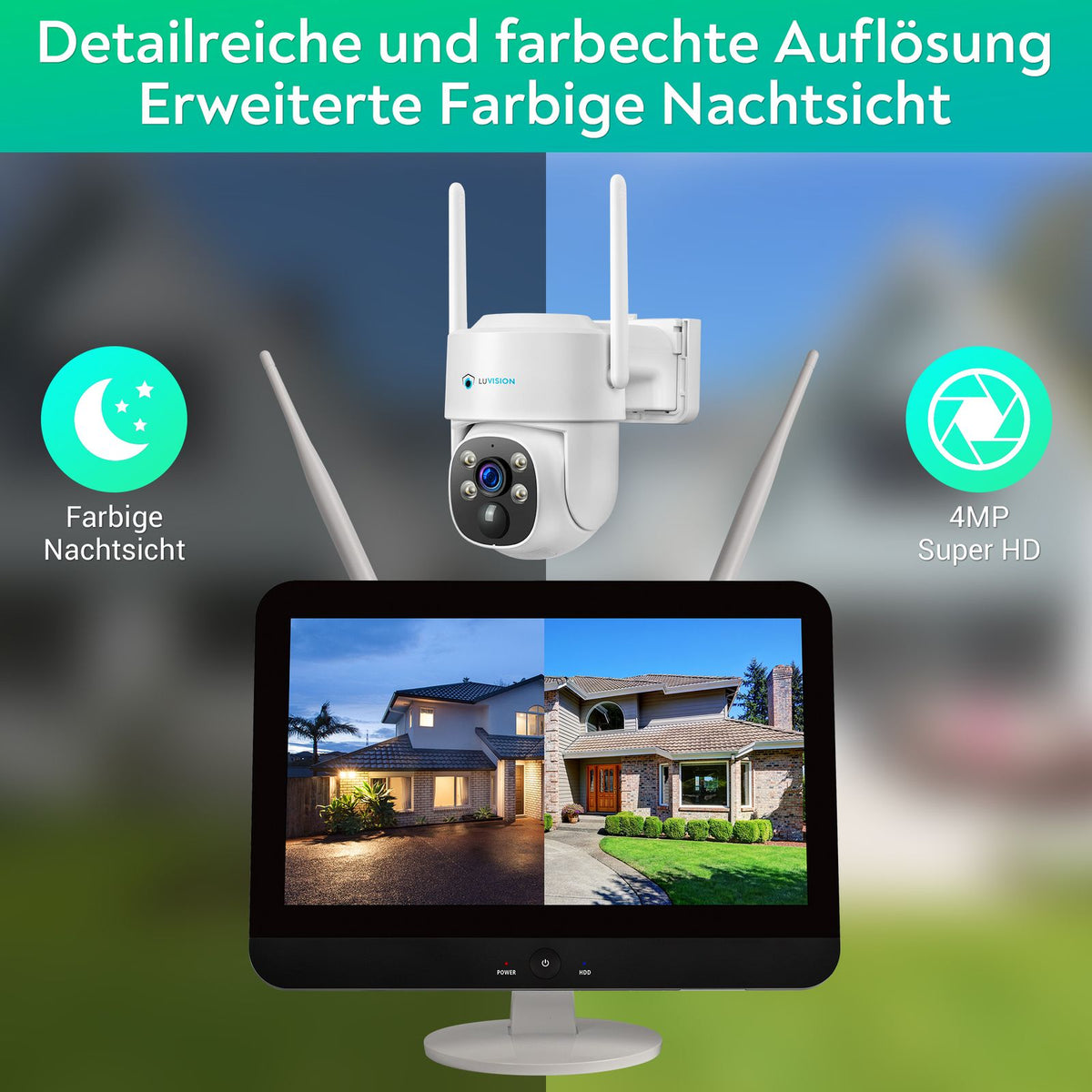

- Smart night vision in color or via IR LEDs in B/W up to max. 20m
- German-language app for iPhone®, Android™ "EseeCloud"
- German-language PC software "EseeCloud"
- AI motion detection with recognition of people, cars or animals
- Delimitation of surveillance areas
- Storage of recordings in the cloud possible (chargeable)
- Storage on 3.5" SATA HDD hard drive or 256 GB microSD card (not included)
- High-resolution monitor with Full HD resolution
- Latest WLAN 6 technology
- Flexible installation of the cameras on the house wall or under the roof
- Recording by schedule, motion detection and manual
- Pentaplex function: Simultaneous recording, playback, live view and backup of all channels

Technical Data

Network Video Recorder with Monitor
Model: K8508-MW
12.5" Monitor (LED Display) with Full HD 1080p resolution
Signal transmission: WLAN or LAN connection to internet-enabled router
Max. number of cameras: 10 LUVISION W601
Video compression: H.265+
Supported resolution: 5MP/4MP/3MP/1080P/720P
Storage medium: 3.5" SATA hard drive max. 6 TB, microSD card max. 256 GB (not included)
Menu navigation: multilingual including German
High range of up to 800m thanks to WLAN-6 technology
Flexible stand, also suitable for wall mounting
Input voltage: 100 – 240 V AC
Power supply: DC 12 V/3 A (power adapter included)
Power consumption: ≤5 W

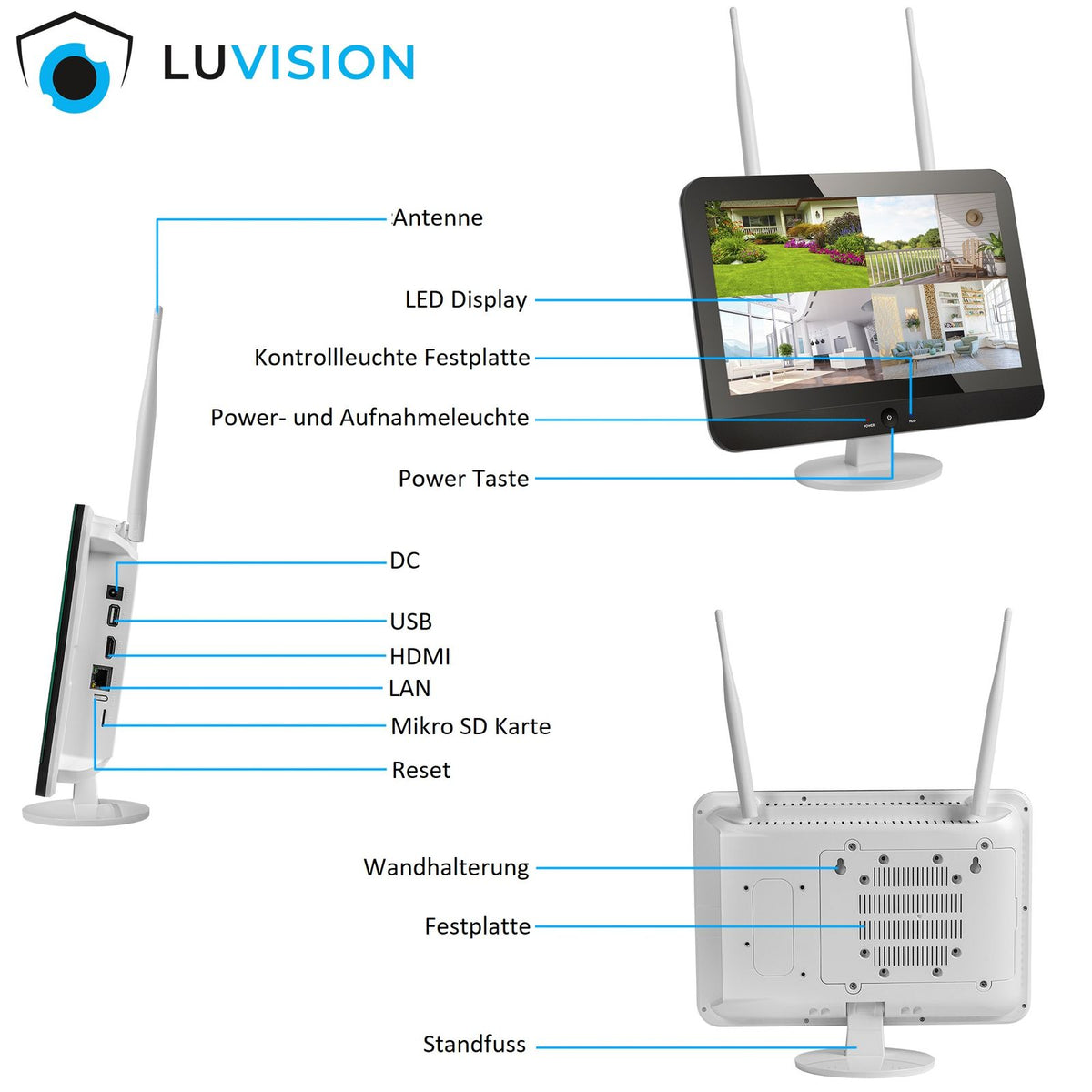

Connections: Power, USB (for mouse and backup), HDMI, LAN
Dimensions (L x W x H): 290 x 50 x 200 mm
Weight: 860 g (without hard drive)

PTZ Camera:
Model: W601
Pixel: 4 Megapixel
Resolution: 2560 x 1440 pixels
Sensor: 1/3" Scan Sensor
Lens: 3.6 mm lens
Lens angle: 120°
PIR range: 8 meters

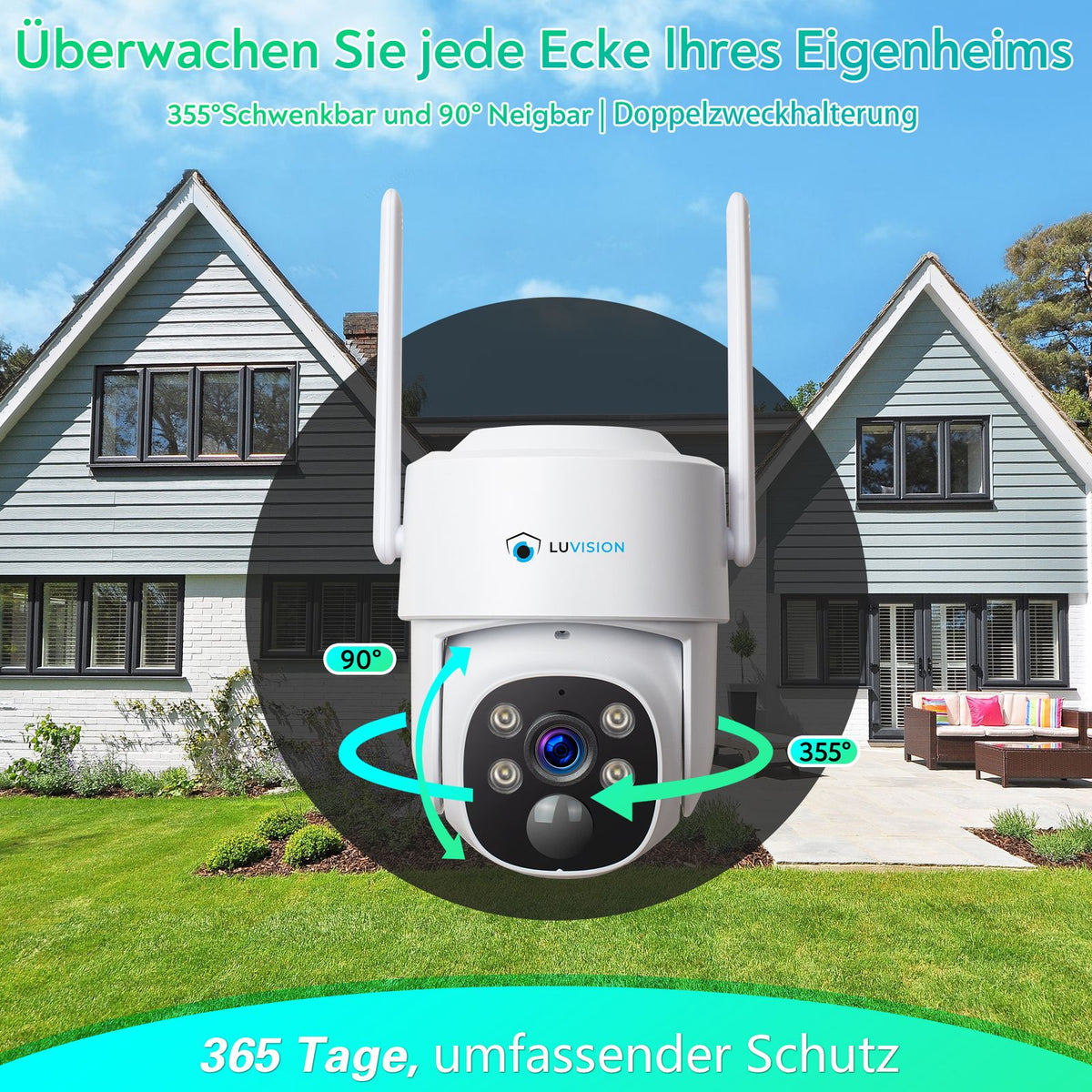

PTZ angle: 355° pan / 90° tilt
Stream (Dual-stream): 2560 x 1440 pixels@15fps, 640 x 360 pixels@15fps
Smart white light and IR night vision: up to 20 m
Light sensitivity: Color 0.1 Lux, B/W 0.01 Lux
OSD: Date, Time and Title
Day and Night: Auto / Color / B/W
Noise reduction: supports 3D-DNR
Microphone/Speaker: yes/yes, integrated, G.711 encoding
Siren: yes
Privacy masking: 4 optional zones
WLAN standard: Wi-Fi 2.4G (IEEE 802.11 b/g/n/ax)
Network interface: 1x RJ45 10M/100M
Power supply: 5 V DC, max. 2 A or solar panel 4.5 V ~ 7.5 V
Battery (integrated): Lithium 7800 mAh
Protection class: IP65

Operating environment: Temperature: -10 °C to +50 °C / Humidity: 30 % to 80 % RH
Storage environment: Temperature: -20 °C to +60 °C / Humidity: 20 % to 90 % RH
Camera dimensions (LxWxH): 145 x 105 x 120 mm
Solar panel dimensions (LxWxD) 170x120x10 mm

Scope of delivery:

1 x 12.5“ Monitor (NVR)
1 x Power supply for NVR
1 x USB mouse
1 x LAN cable
2 - 8x 4 MP WLAN Solar PTZ Camera
2 - 8x Mounting material for camera
2 - 8x Solar panel for camera
2 - 8x Mounting material for solar panel
1 x German Quick Guide
