CARMATRIX Solar Reversing System 7" Monitor Magnetic Reversing Camera with Battery for RV, Truck, Van

The Premium Solar 7 DUO rearview camera system consists of two magnetic rearview cameras and a 7" IPS monitor. The camera images are transmitted wirelessly to a monitor inside the vehicle.

This makes parking child's play. Safety is increased as potential obstacles or people are detected early.
A special feature of the camera system is that it can function as a dashcam, recording traffic events on an SD card (not included) during the journey – cyclically after an adjustable recording duration or manually triggered.

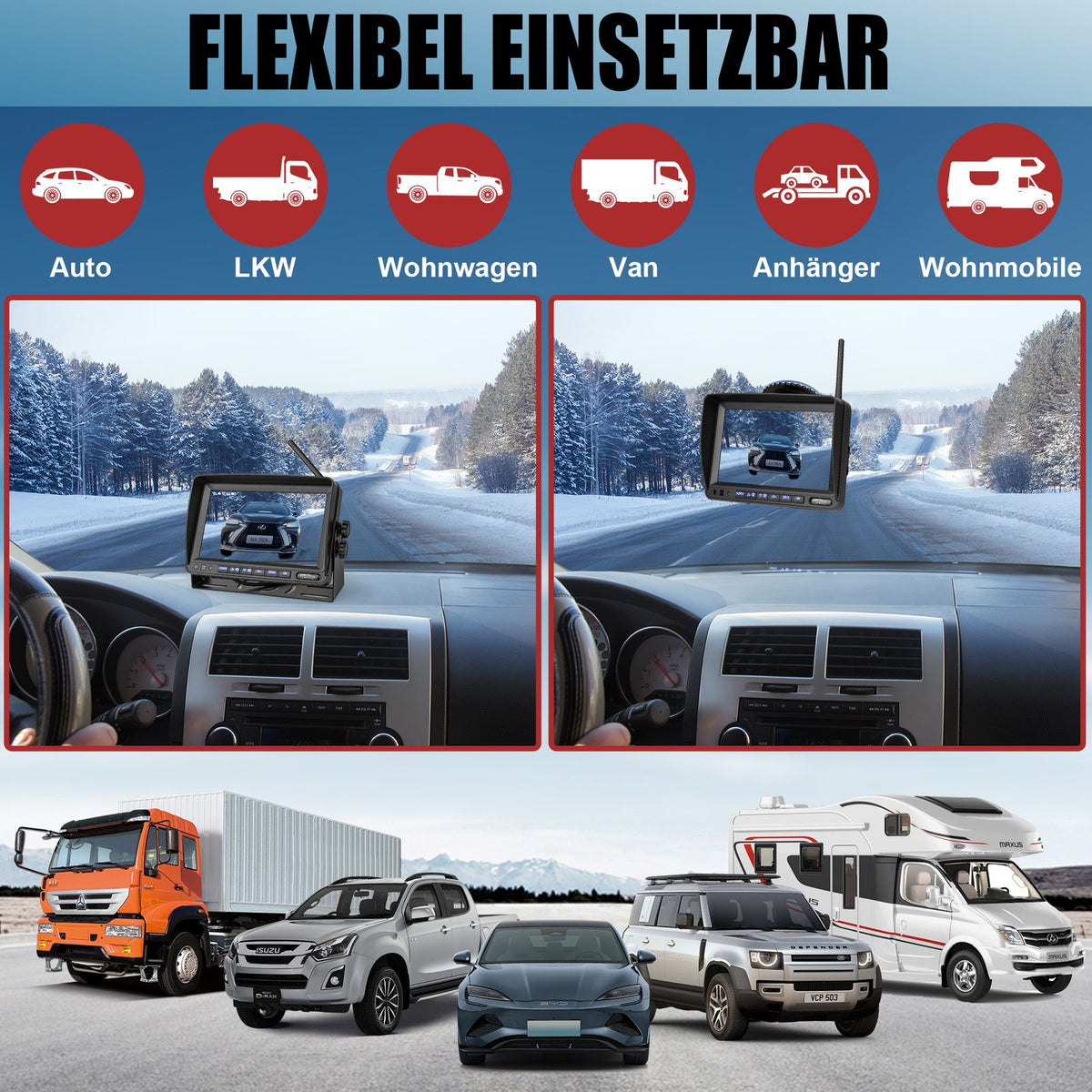

Due to its long wireless range, the system is also suitable for long vehicles such as motorhomes, trucks, vans, trailers, and combinations.

The monitor is positioned in the driver's field of vision using one of the two supplied mounts and connected to an on-board socket (cigarette lighter).

The rearview camera is equipped with a magnet. No cables need to be laid or holes drilled in the bodywork.
This means the system can also be removed without leaving holes in the bodywork. This makes the system the first choice for leased vehicles.

Features

• The monitor is installed in the vehicle's interior, in the driver's field of vision, and powered via the on-board socket (cigarette lighter, 9 ... 30 V DC).

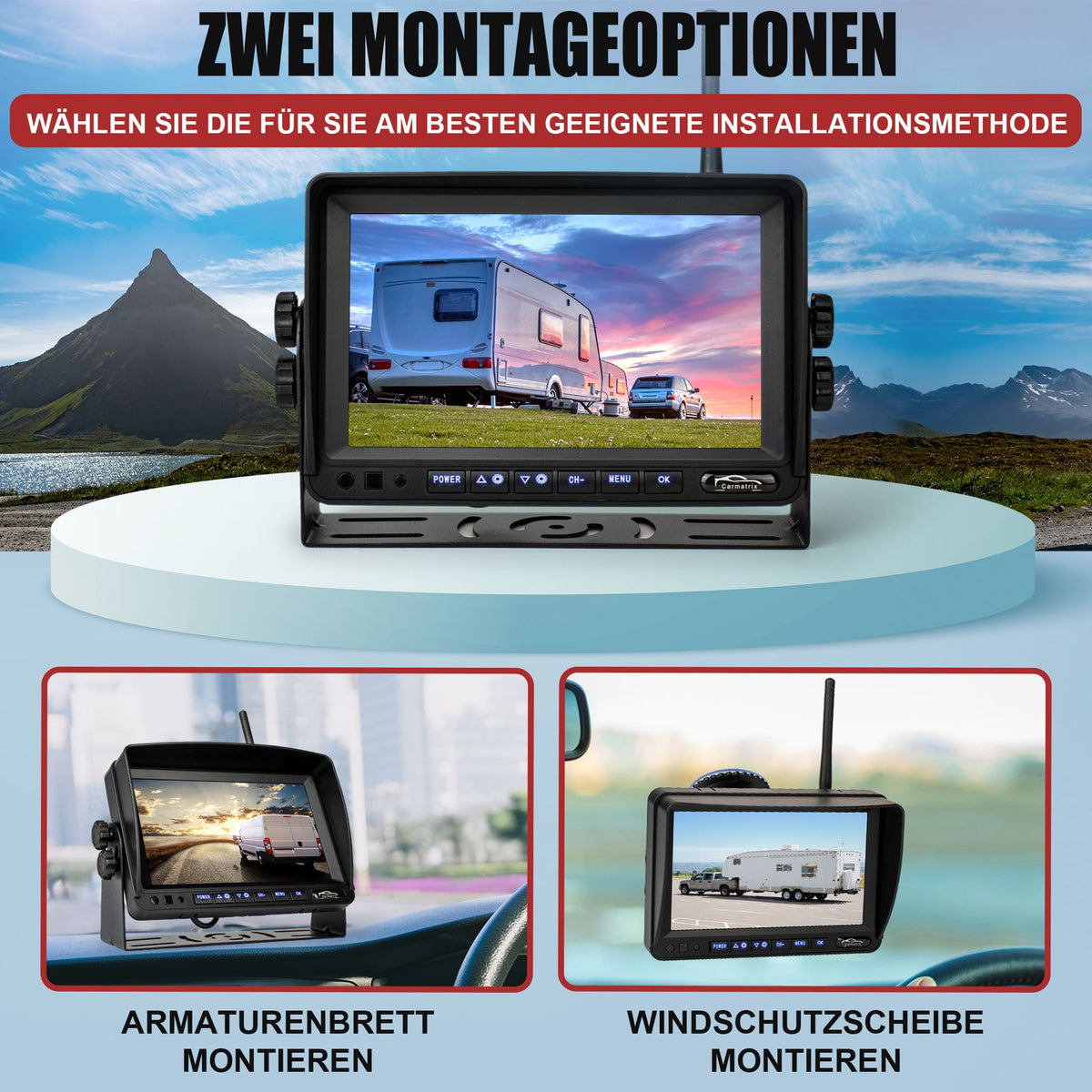

• Two mounts are included for secure monitor attachment: One mount for screwing, e.g., to the dashboard, and one
mount with a suction adapter, which can be removed without leaving any residue.
• The camera images are transmitted wirelessly to the monitor. This increases safety during maneuvering, as potential obstacles or people are detected early –
thanks to integrated infrared LEDs, even in the dark.

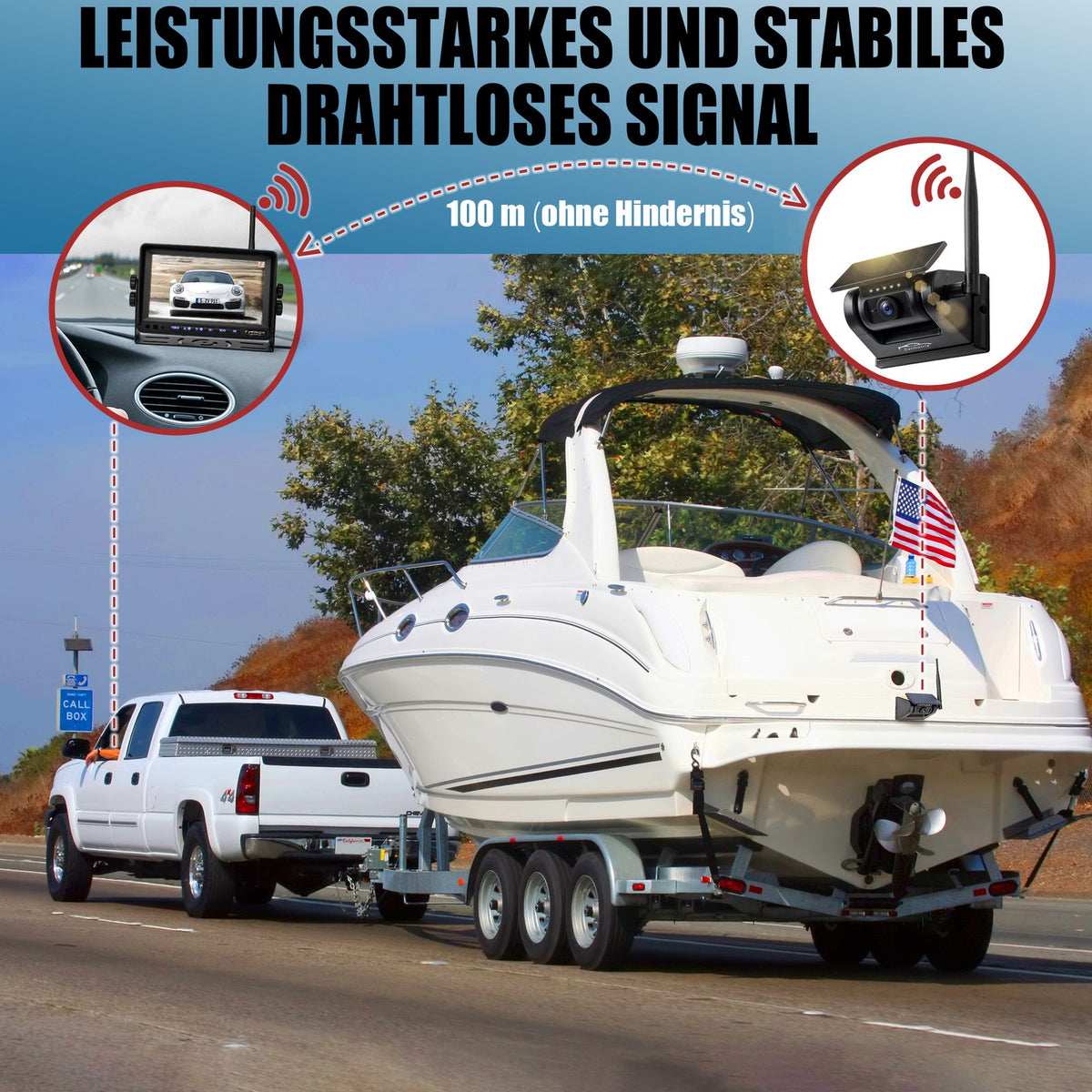

• Due to its long wireless range (max. 100 m without obstacles), the system is also suitable for long vehicles such as motorhomes, trucks, vans, trailers,
and combinations.
• When used as a rearview camera, parking lines can be shown and hidden on the monitor for better orientation and adapted to the respective vehicle and personal needs.

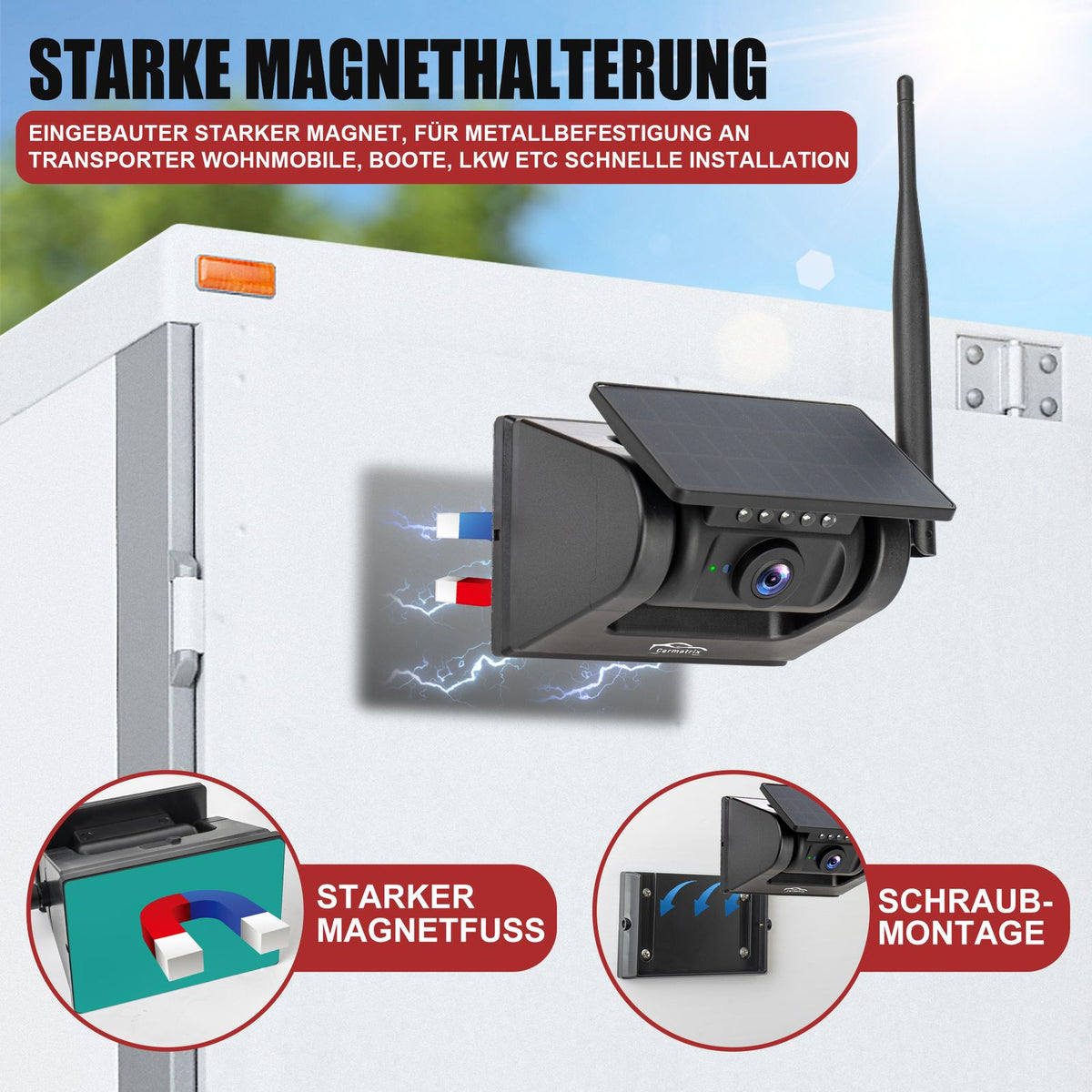

• The cameras can be attached anywhere the magnetic mount adheres. For example, to the bodywork or the bumper. Screw mounts are included for non-magnetic mounting locations.
• The magnetic mount of the cameras allows for easy installation without drilling, but also for residue-free disassembly, which is important for leased vehicles.

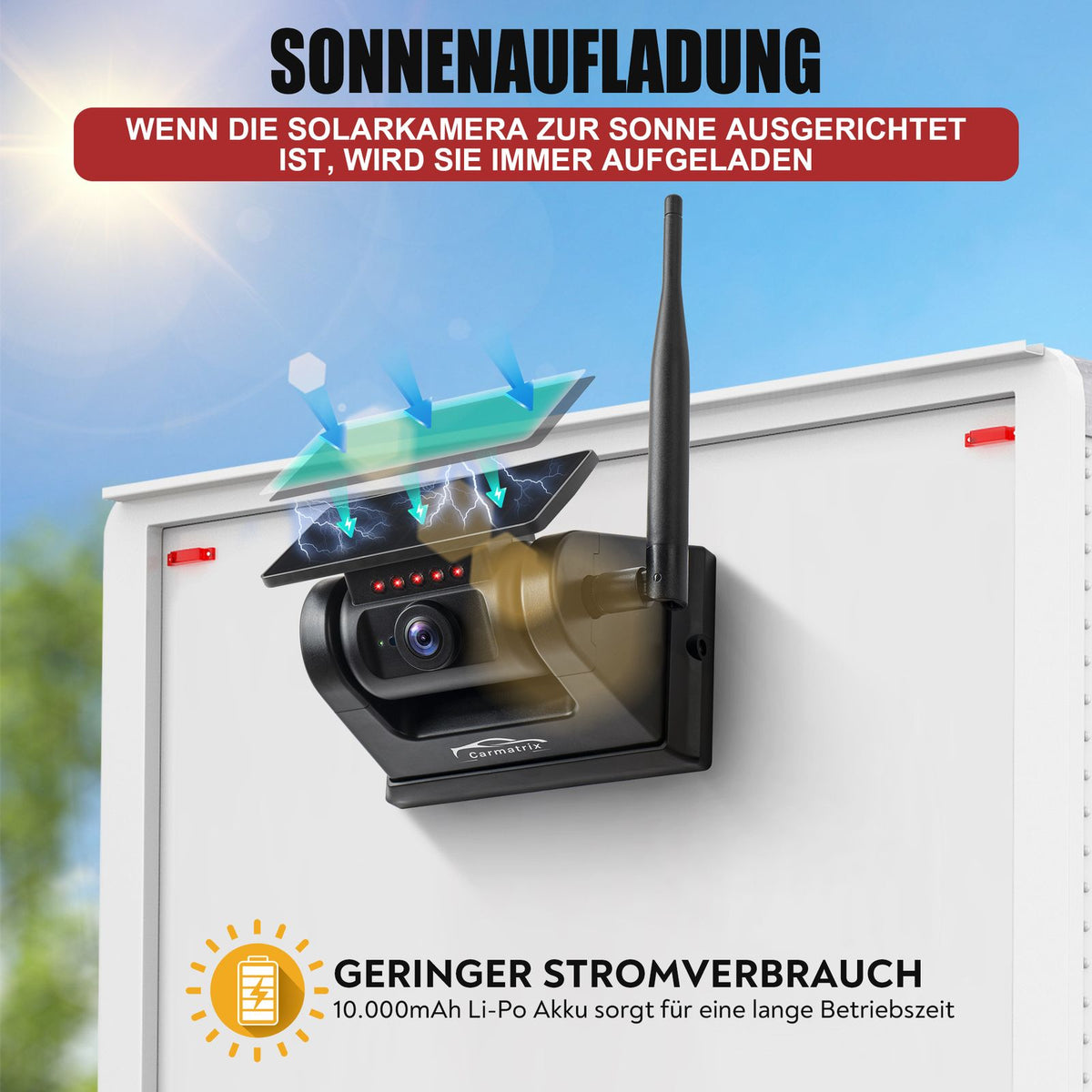

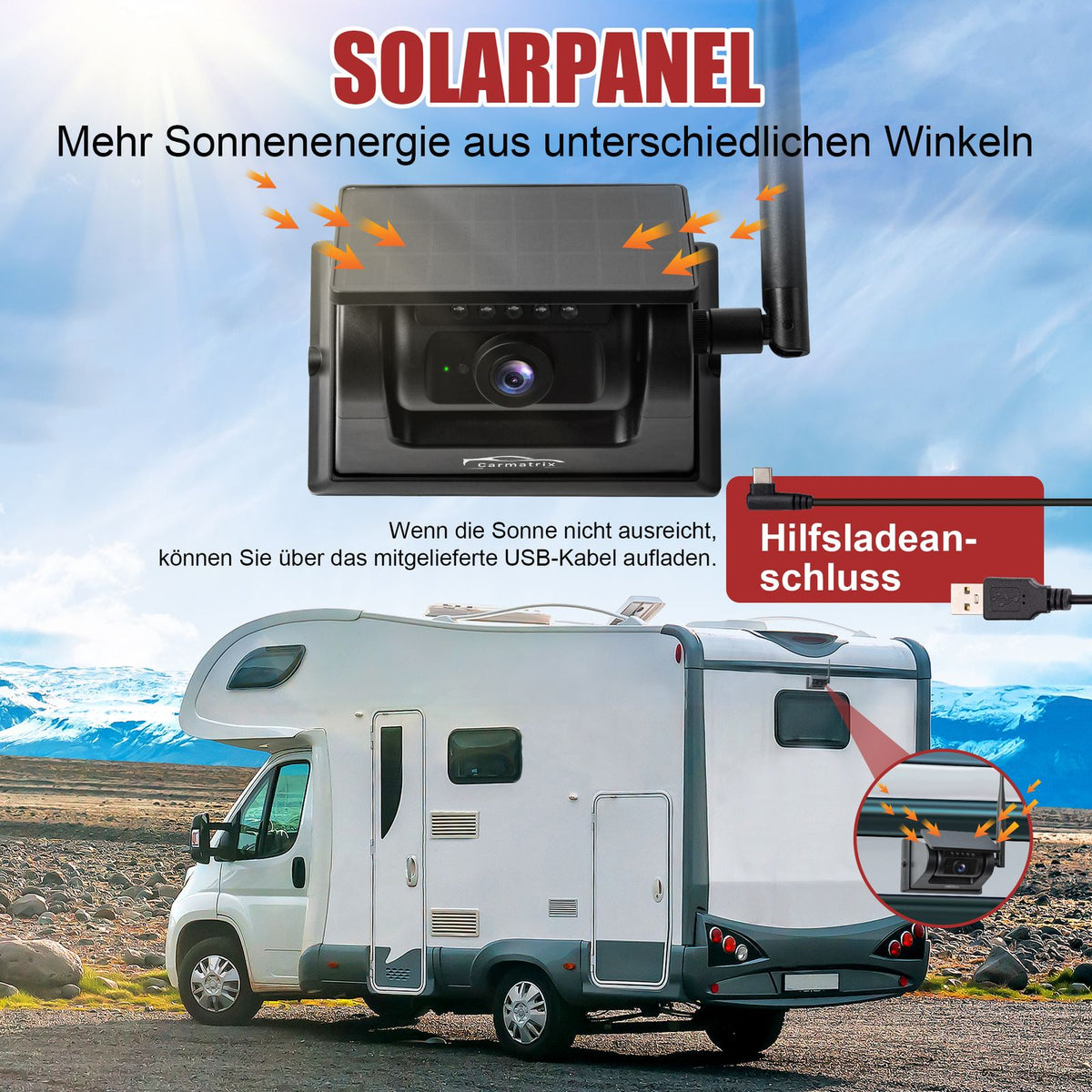

• The cameras are powered by rechargeable batteries, which are charged via a solar panel. This means no cables need to be laid.
• To save energy, an integrated G-sensor switches the cameras to sleep mode when the vehicle is stationary. As soon as a vibration is detected (e.g., by the vehicle starting), the cameras are "woken up."
• A special feature of the camera system is that it can also be used as a dashcam. It records traffic events on an SD card (not included) during the journey – cyclically, after an adjustable time interval.
• The camera shows the area in front of or behind the vehicle. For better orientation, parking lines can be shown and hidden on the display and adapted to the respective vehicle and needs.
• The magnetic mount allows for easy installation without drilling.
• Via the built-in G-sensor, the camera goes into sleep mode when the vehicle is stationary to save energy.

Specifications:

Monitor
• Display: 7ʺ (18cm) IPS HD monitor
• Resolution (W x H) 1024 x 600 px
• Menu settings: Pairing, brightness, contrast, saturation, mirroring, parking guidelines,
Display Standby, sounds, languages (German, English, French)
• Activation: via button on the monitor or cigarette lighter plug
• Blue illumination of the buttons on the monitor
• Adjustable display time: 45, 60, 90, 120, 180 and 240 seconds or permanent
• Automatic activation: via vibration (G-sensor)
• Screen display: single image and split dual image

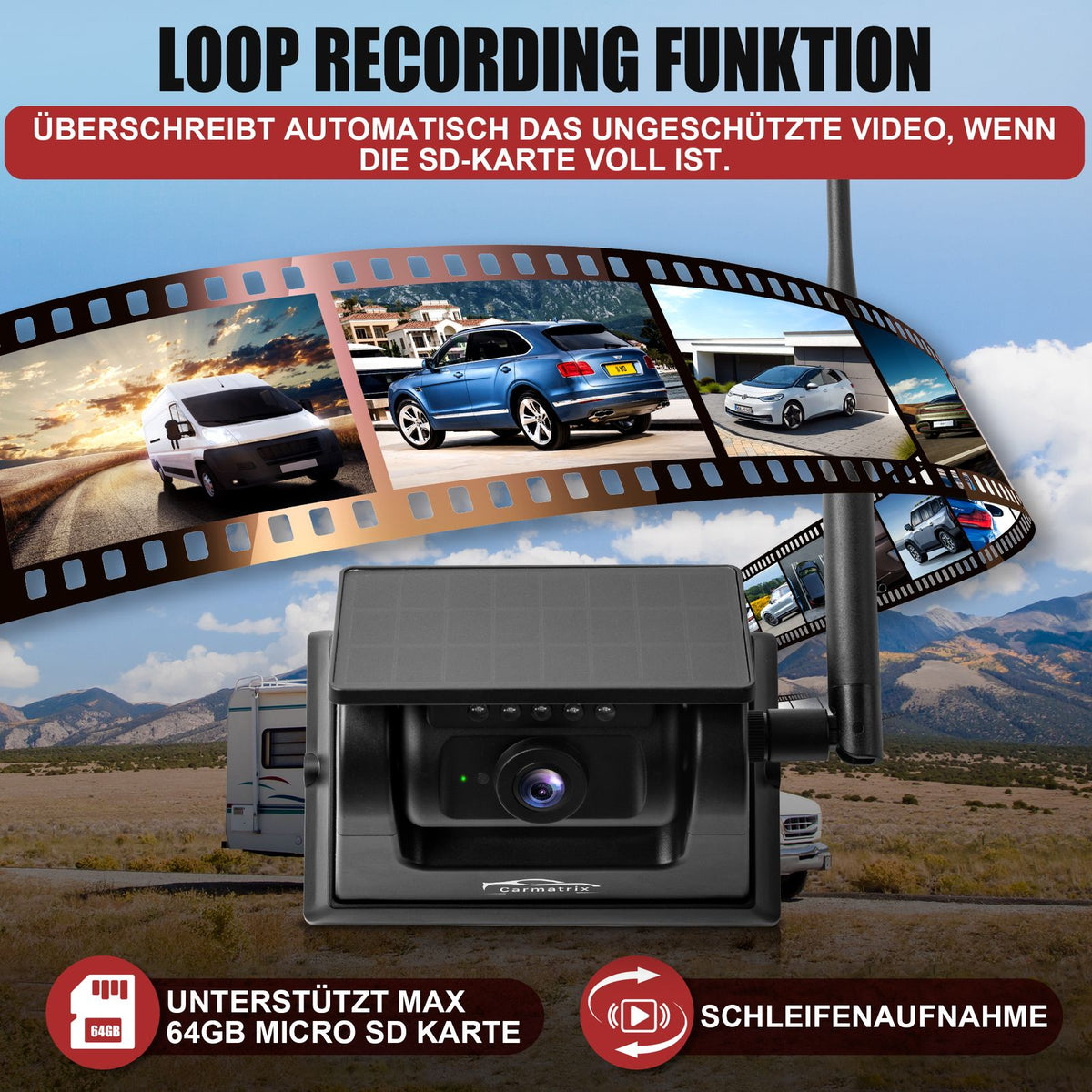

• Recording function on SD card (also in loop recording)
• Supported SD card: Micro SD card Class 10 max. 64GB
• Video system: MJPEG
• Input voltage (power supply): 9–30 V DC
• Dimensions (W x H x D): : 110 x 74 x 35 mm (without antenna)

Camera

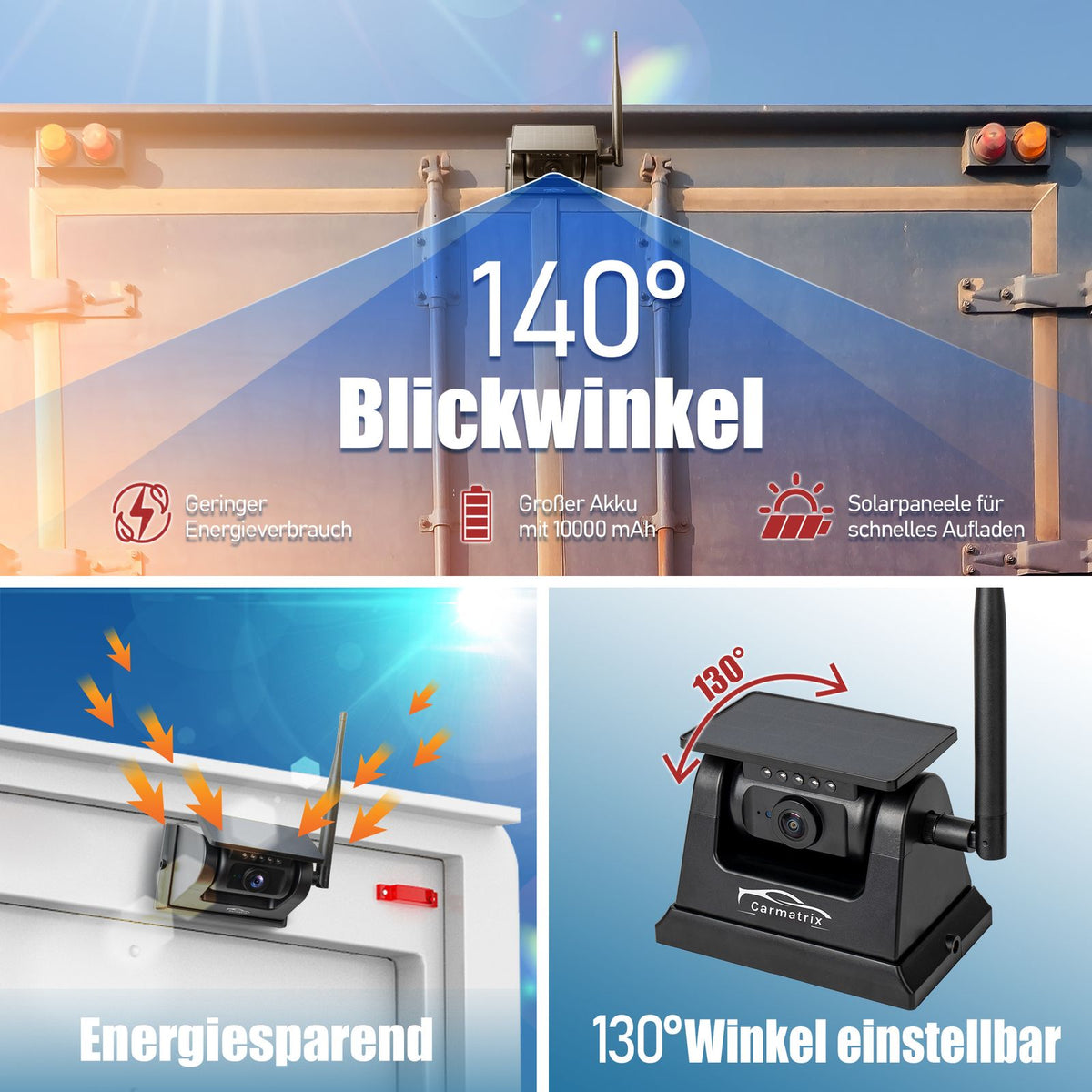

• Viewing angle (Horizontal / Vertical / Diagonal): 140° / 90° / 180°

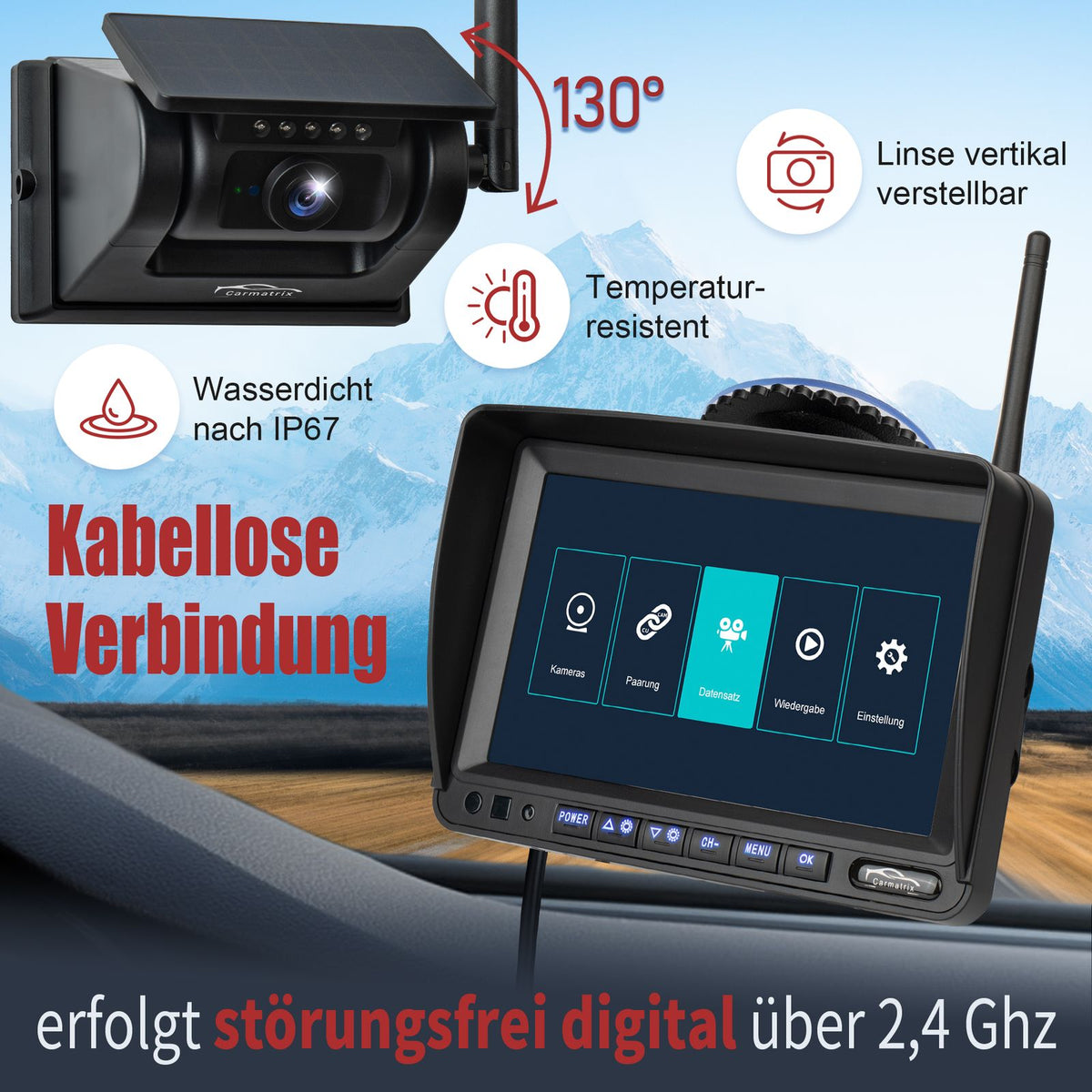

• Camera adjustment angle: 130°
• CMOS sensor
• Resolution (W x H): HD 1,280 x 720 px
• Frame rate: 30fps
• Video system: MJPEG
• Operating voltage: 5.0 V DC

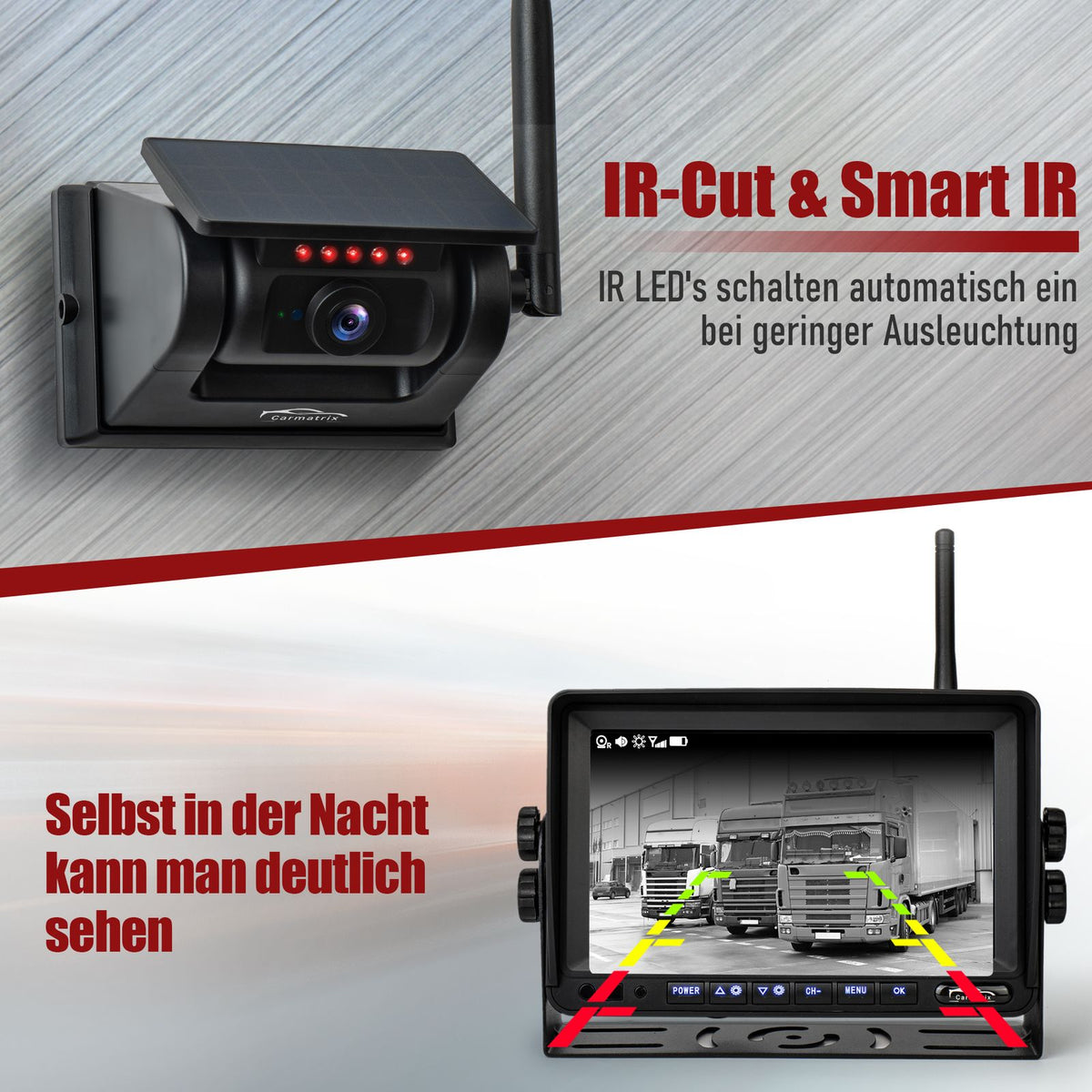

• Night vision: 6 IR LEDs
• Power consumption: 0.6 mA (standby), 300 mA (in operation)
• Solar panel: 1x 5V/1W
• Li-Po battery: 3.7 V/10,000 mAh
• Battery life without solar charging: 100 days
• Operating temperature: -20°C – 60°C (max. 70% RH)
• Dimensions (W x H x D): 110 x 88 x 73 mm (without antenna, without mounting plate)
• Protection class: IP67

Wireless network
• Frequency band: 2.4 Ghz (Digital without interference)
• Frequency range: 2.400–2.483.5 MHz
• Modulation type: GFSK
• Modulation type: FHSS (Frequency Hopping Spread Spectrum)

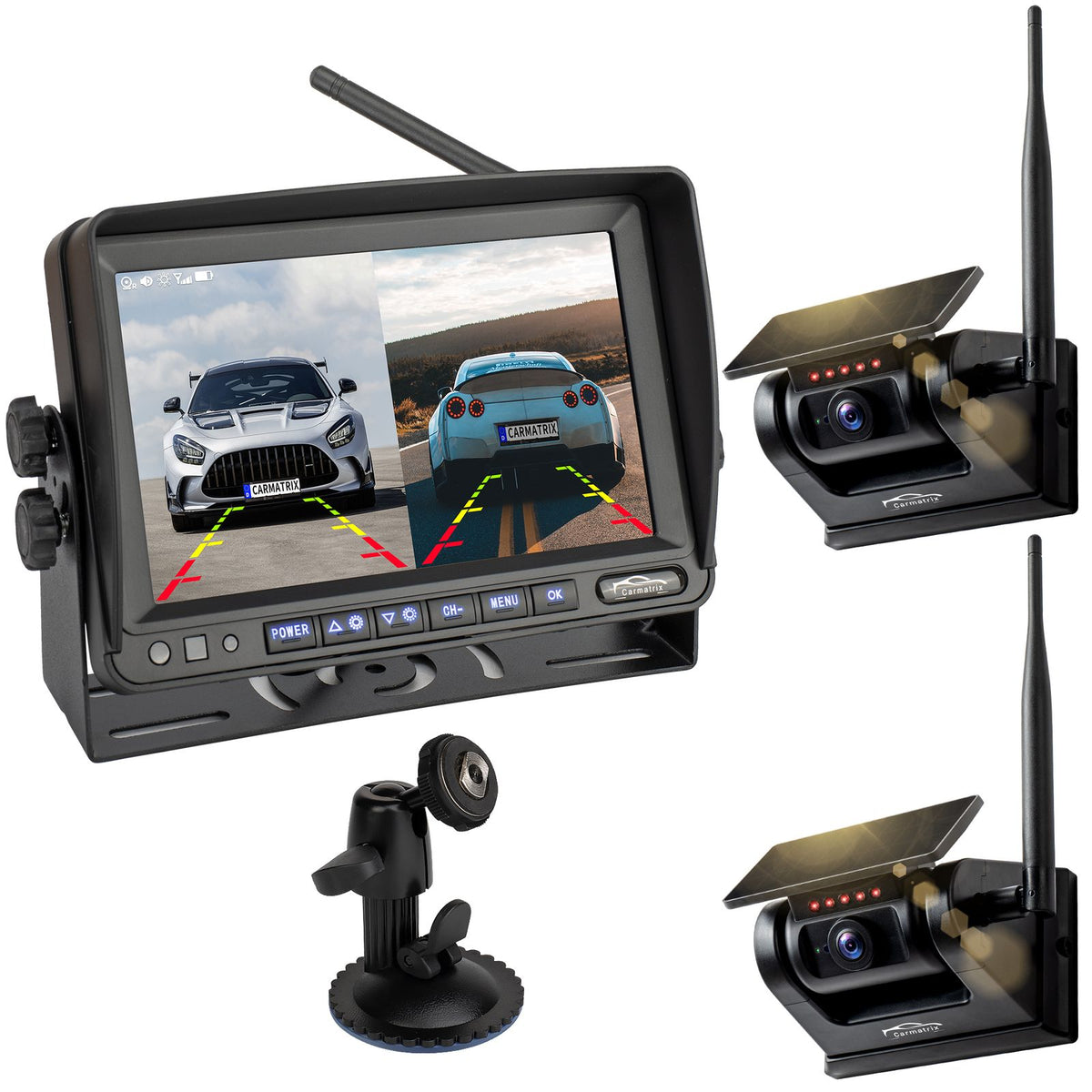

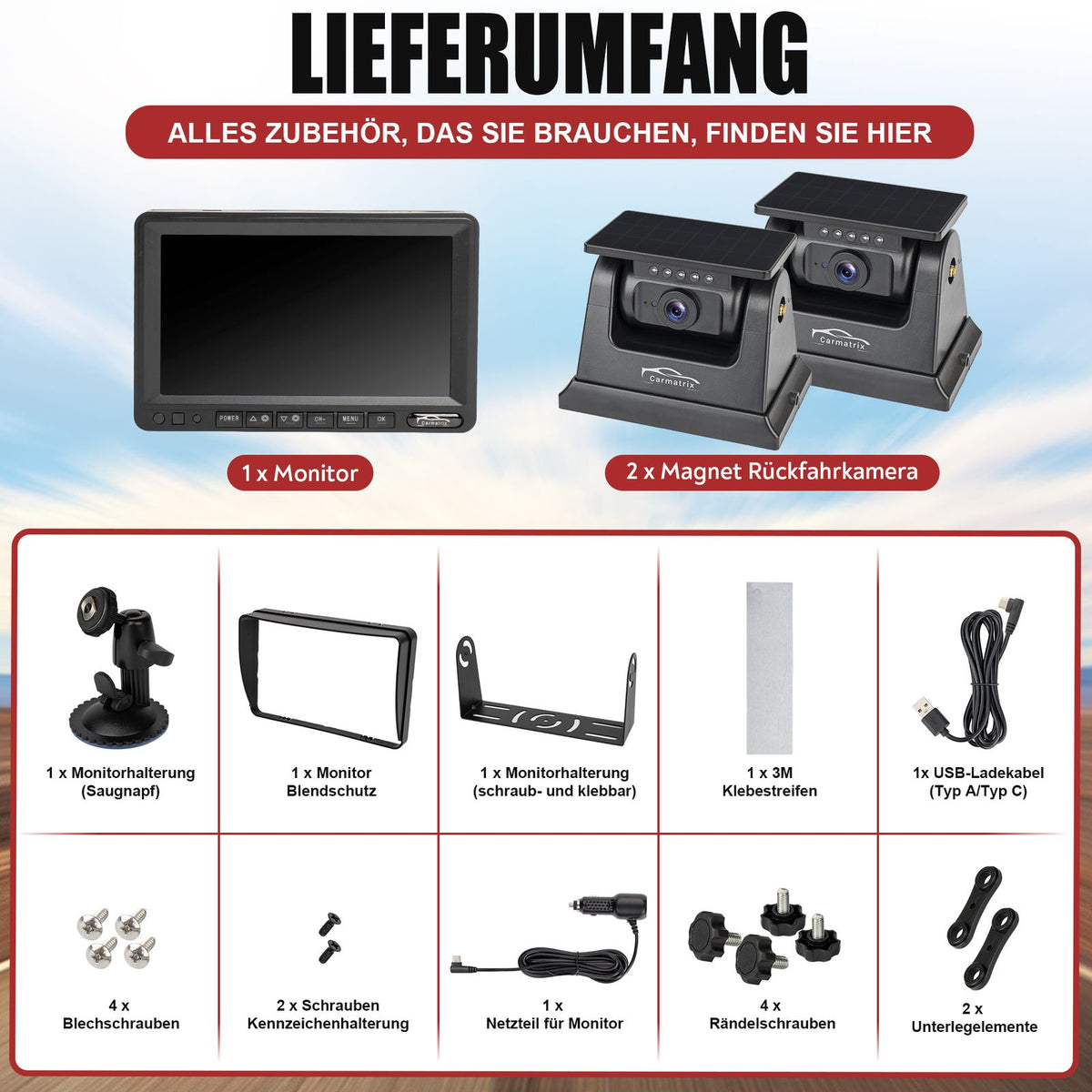

Scope of delivery

1x 7" IPS monitor with anti-glare frame
2 x Rearview camera with magnetic base and solar module
1x Power supply for on-board socket (cigarette lighter)
1x Monitor mount for screwing to the dashboard
1x Monitor mount with a suction cup for attachment to the windshield.
1x Charging cable for magnetic rearview camera
1x German manual
1x Mounting material
