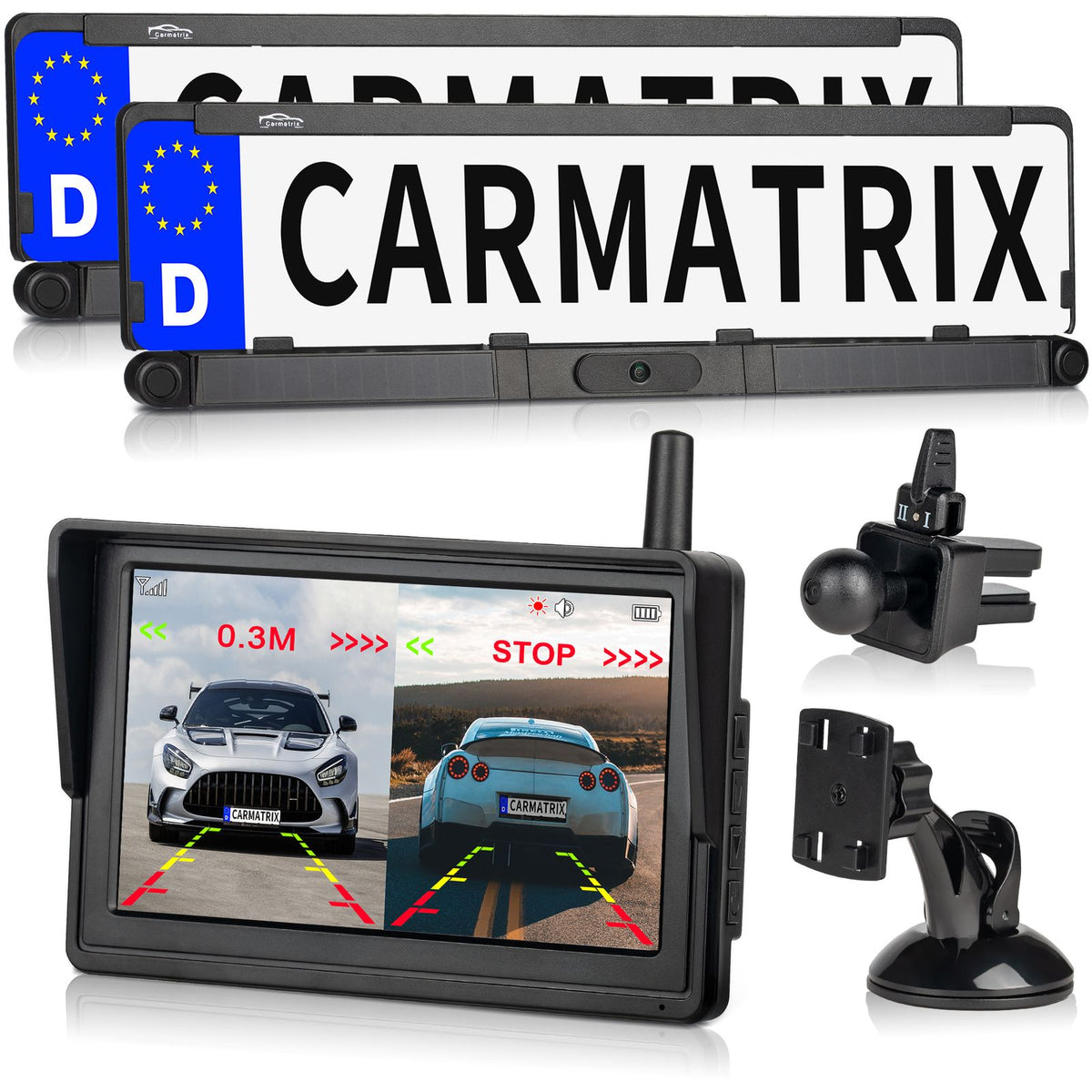

CARMATRIX Solar Reversing System HD Rear View Camera in License Plate with Parking Sensors for Front and Rear

The  PREMIUM Solar 2 DUO Reversing System with PDC from CARMATRIX combines the advantages of a reversing camera and parking sensors in one license plate frame.
Parking becomes child's play with visual and acoustic support. This car reversing system has been designed for front and rear.

Simply replace the license plate holder and the camera sends an image of the area behind and in front of the vehicle to a monitor in the interior.
The integrated PDC ultrasonic parking sensors measure the distance between the vehicle and obstacles.

Thanks to the solar panel and integrated battery, there is no need to lay annoying cables or drill holes.

The PDC solar video reversing system offers a number of advantages over conventional video reversing systems.
It does not require cables or complicated installation to the power supply, as it is solar-powered.

The full field of view with the 2 PDC distance sensors also offers more safety, and any obstacles or people both in front of and behind the vehicle can be detected early.

The CARMATRIX Premium Duo PDC Video Solar Reversing System is a great way to simplify parking and increase safety.

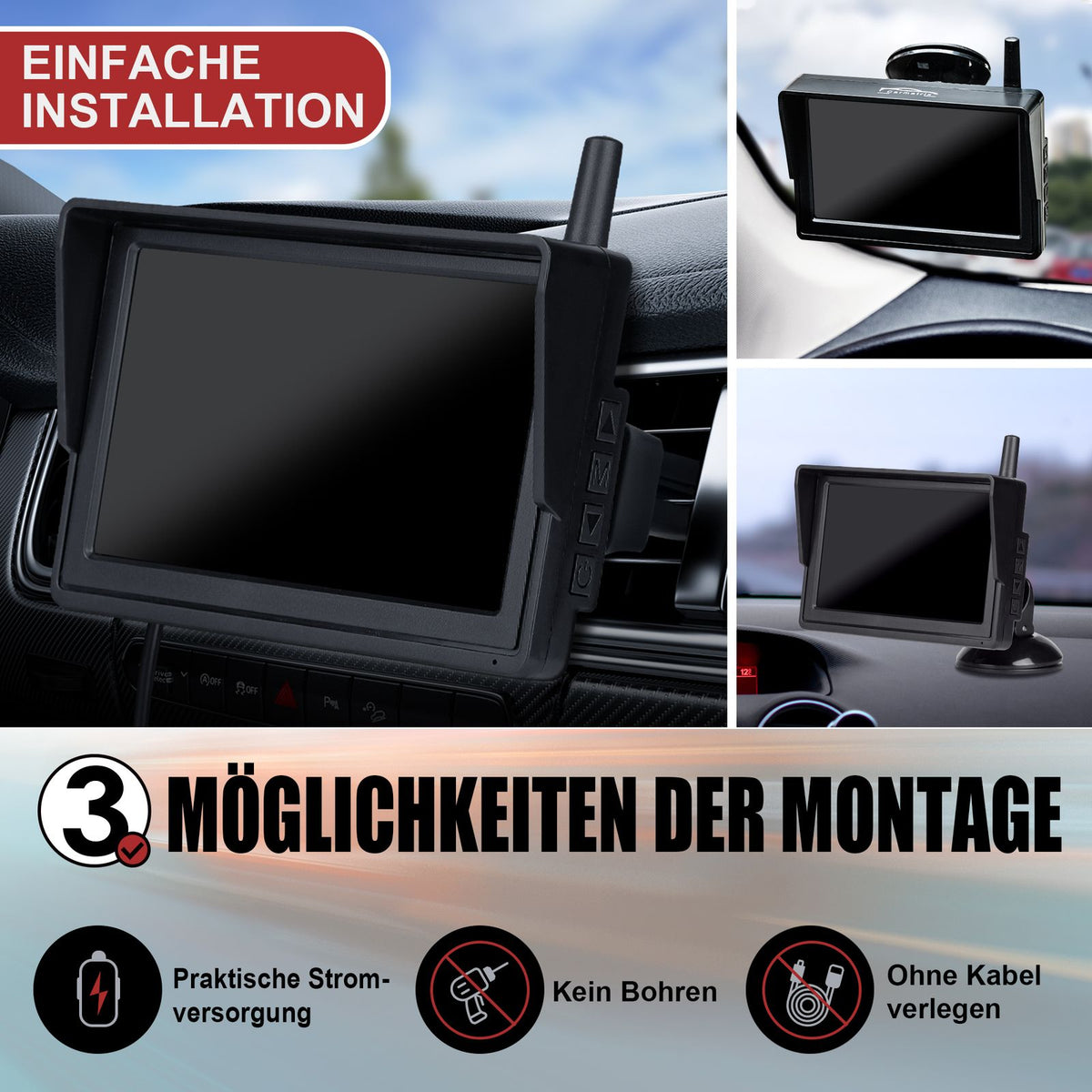

Flexible monitor mounting with the 2 included brackets and voltage adapter with 12 – 30 V input voltage, as well as integrated USB charging socket for charging your mobile phone.

Both solar video reversing cameras are intended for use at the front and rear of the vehicle. Display as split or single image.

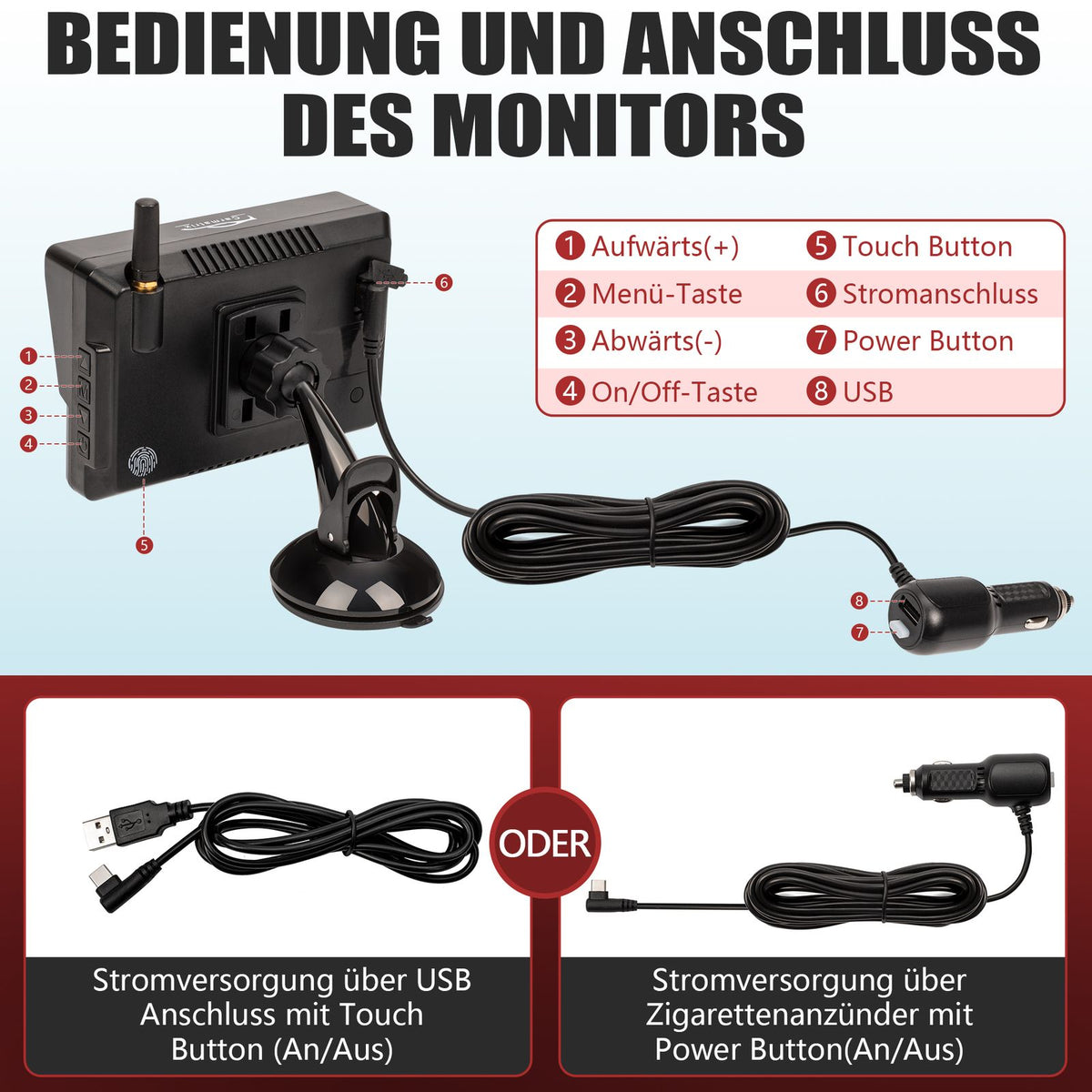

Switching via power button on the cigarette lighter plug or touch button on the back of the monitor.

Easy installation in the vehicle. No drilling or laying cables. No holes need to be drilled into the bodywork or cables laid awkwardly.

The monitor is powered via the cigarette lighter or a USB cable to a USB socket in the vehicle.

Features:

• Low maintenance thanks to integrated powerful battery and solar module.
• Sustainable through operation with solar energy.
• Wide field of view of the reversing camera with 170° for a better view of the area behind or in front of the vehicle.
• High-resolution HD reversing camera with CEMOS sensor
• Increased additional safety through 2 PDC sensors at 10cm intervals.

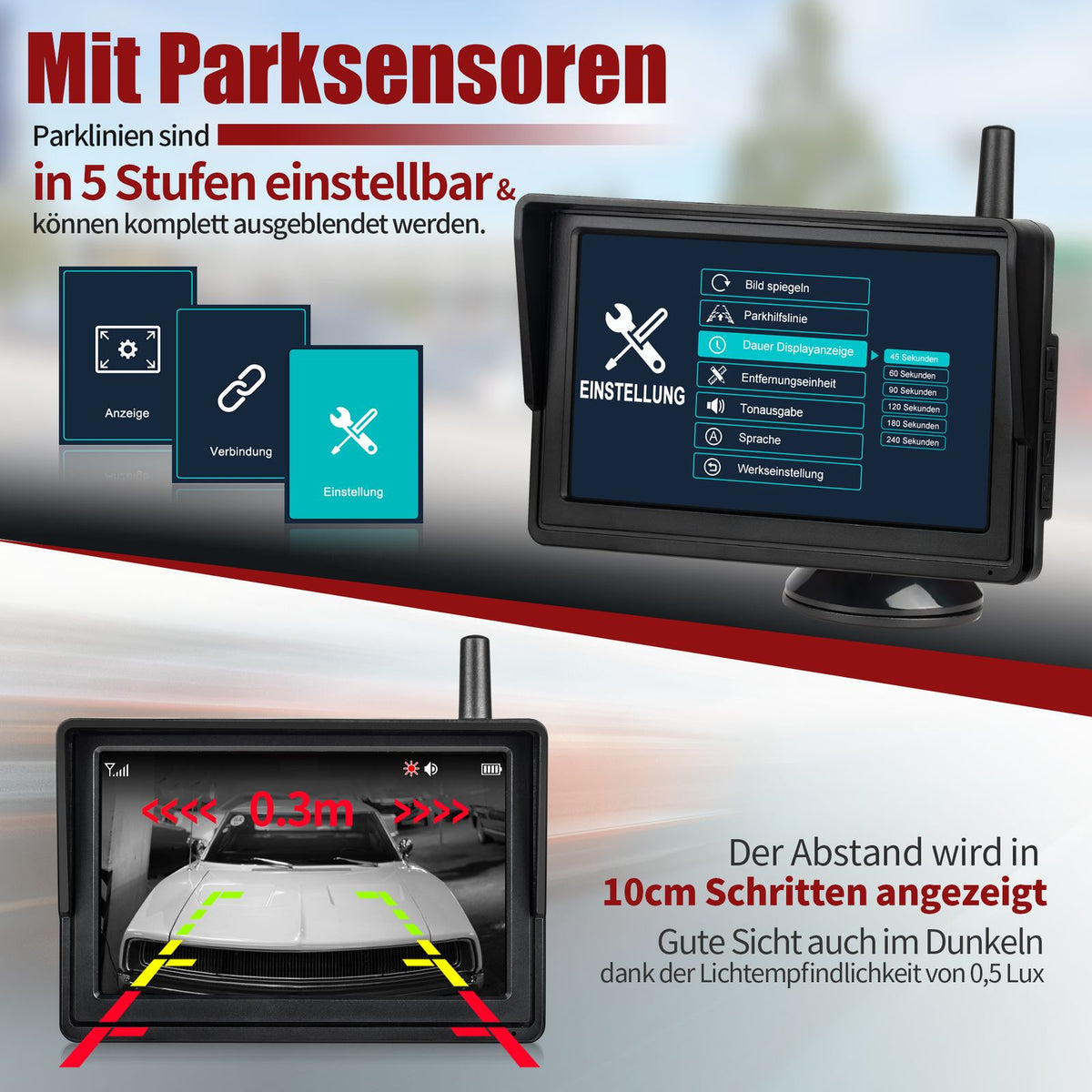

• Graphical and acoustic distance display on the monitor
• Radio range 17.5m (up to max. 100m (clear view))
• Hide/show distance lines
• Distance lines can be shown and hidden
• Using a vibration sensor, the camera automatically recognizes when it is not needed and switches to standby.
As soon as the sensor detects a vibration, the camera switches back on.
• Powerful Li-Po battery with 5,000mAh works even without sunlight for up to 100 days
• Mirror function on the monitor - front and rear mounting possible
• Minimum illumination of 0.5 Lux allows a clear view even in the dark
• Easy installation without drilling and laying cables
• No interference thanks to 2.4 GHz radio technology

Specifications:

Monitor

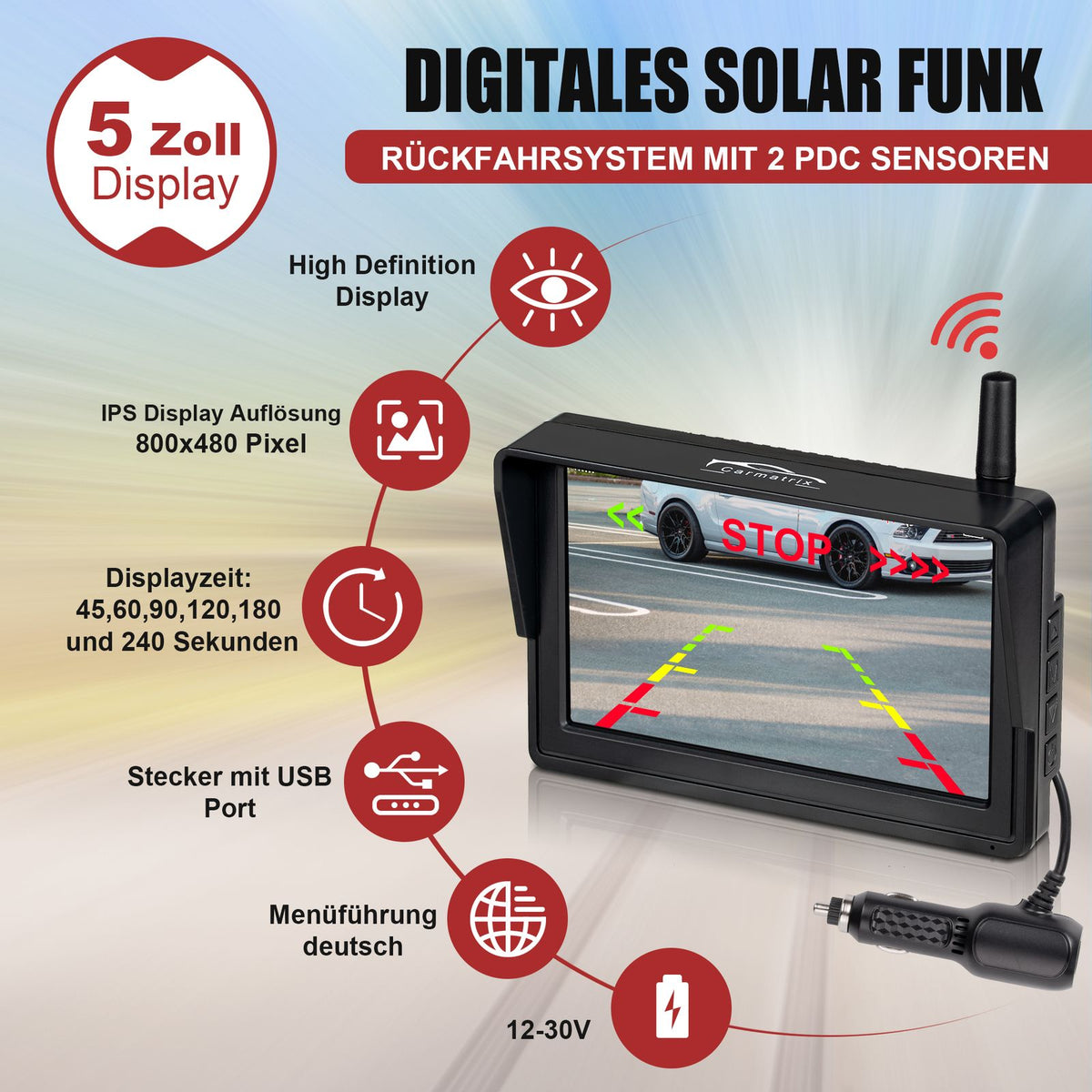

• Display: 5ʺ IPS-HD monitor
• Resolution (W x H): 800 x 480 px
• Menu settings: Pairing, brightness, contrast, saturation, mirroring, parking guidelines, display standby, sounds, languages (German, English, French)
• Activation: via touch button on the monitor (back) or cigarette lighter plug
• Adjustable display time: 45, 60, 90, 120, 180 and 240 seconds
• Automatic activation: via vibration (G-sensor)
• Additional activation: Via button on the back of the monitor or via cigarette lighter
• Video system: MJPEG
• Input voltage (power supply): 9 – 30 V DC
• Dimensions (W x H x D): 128 x 85 x 38 mm (without antenna)

Camera

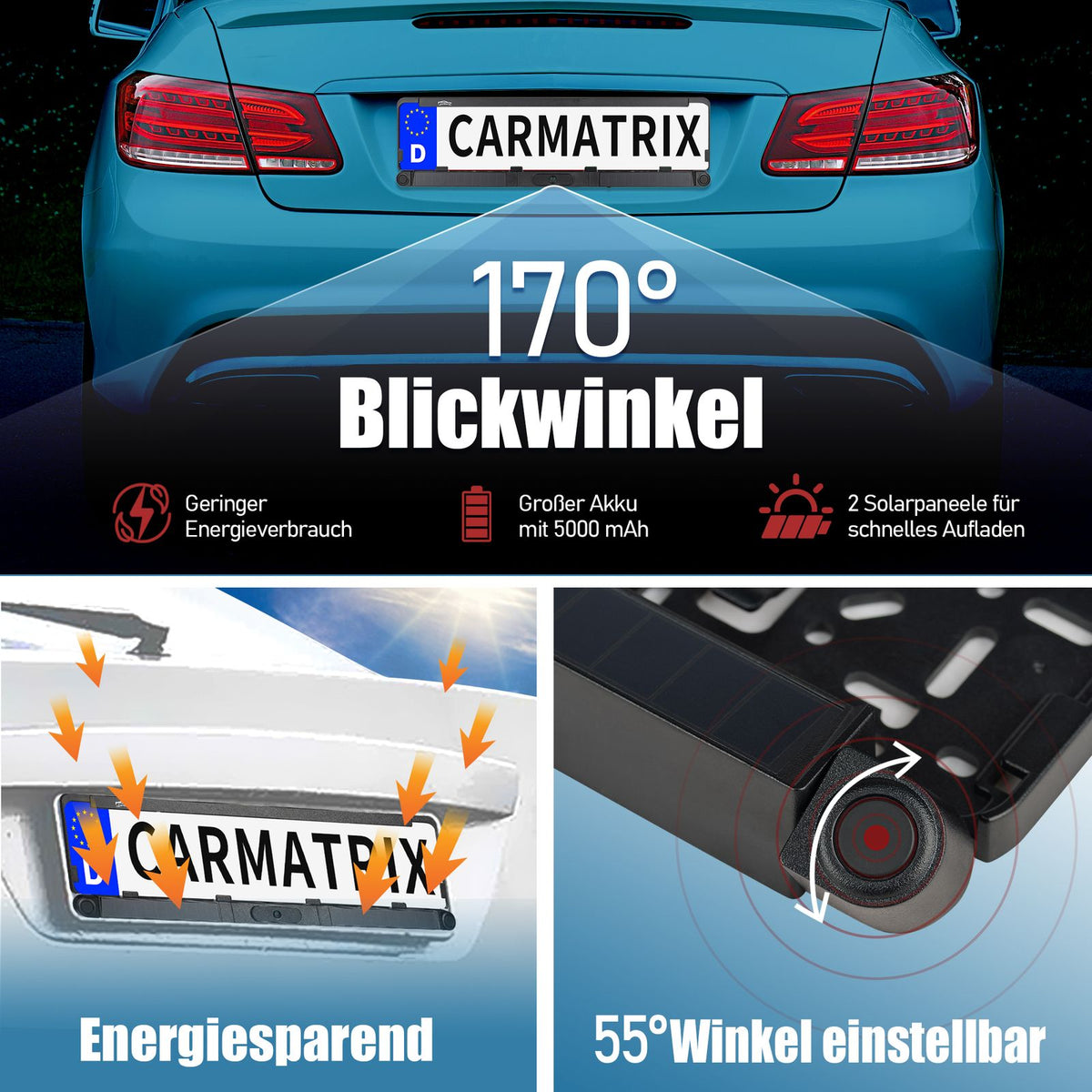

• Viewing angle (Horizontal / Vertical / Diagonal): 170° / 90° / 180°

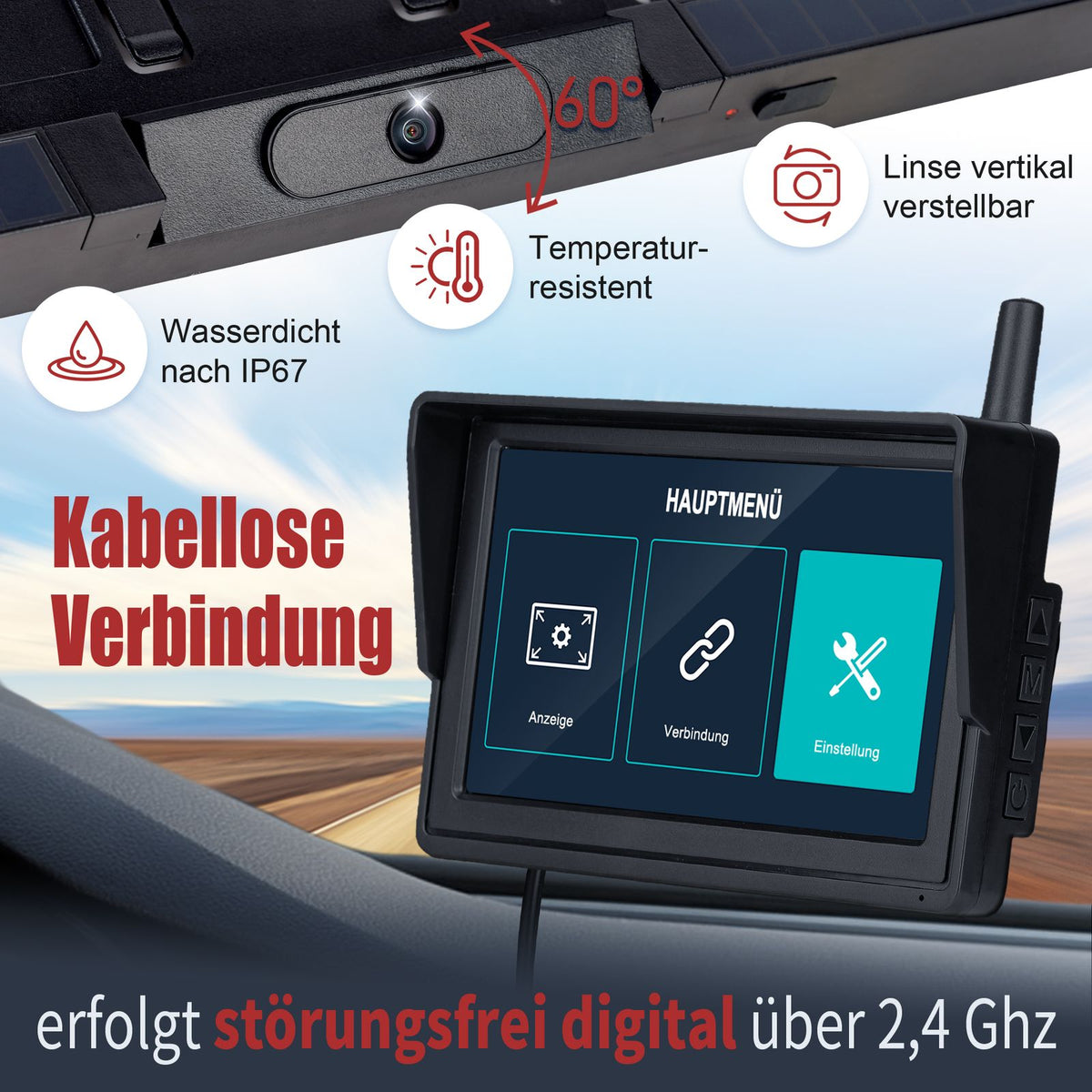

• Camera adjustment angle: 60°
• CEMOS sensor
• Resolution (W x H): HD 1,280 x 720 px
• Frame rate: 30fps
• Video system: MJPEG
• Operating voltage: 5.0 V DC
• Power consumption: 0.6 mA (standby), 280 mA (in operation)

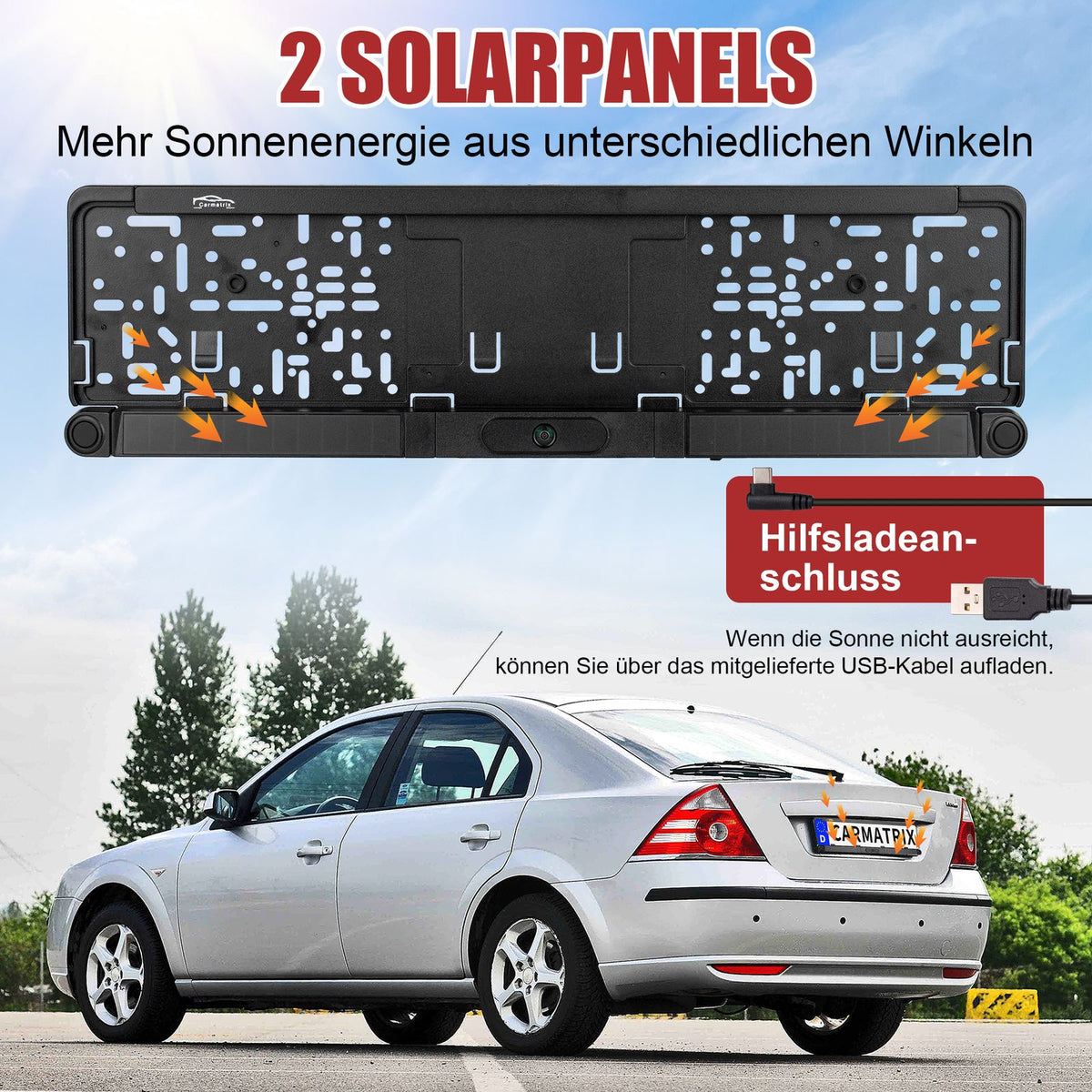

• Solar panel: 2x 5V/0.5 W
• Li-Po battery: 3.7 V/5,000 mAh
• Battery life without solar charging: 100 days
• Operating temperature: -20°C – 60°C (max. 70% RH)
• Dimensions (W x H x D): 529 x 150 x 35 mm
• Protection class: IP67

Suitable for all EU license plates (except Austria as these are 1cm higher)
Single-line license plates: Width: 520 mm, Height: 110 mm

Wireless network

• Frequency band: 2.4 Ghz (Digital without interference)
• Frequency range: 2.400 – 2.483.5 MHz
• Modulation type: GFSK
• Modulation type: FHSS (Frequency Hopping Spread Spectrum)

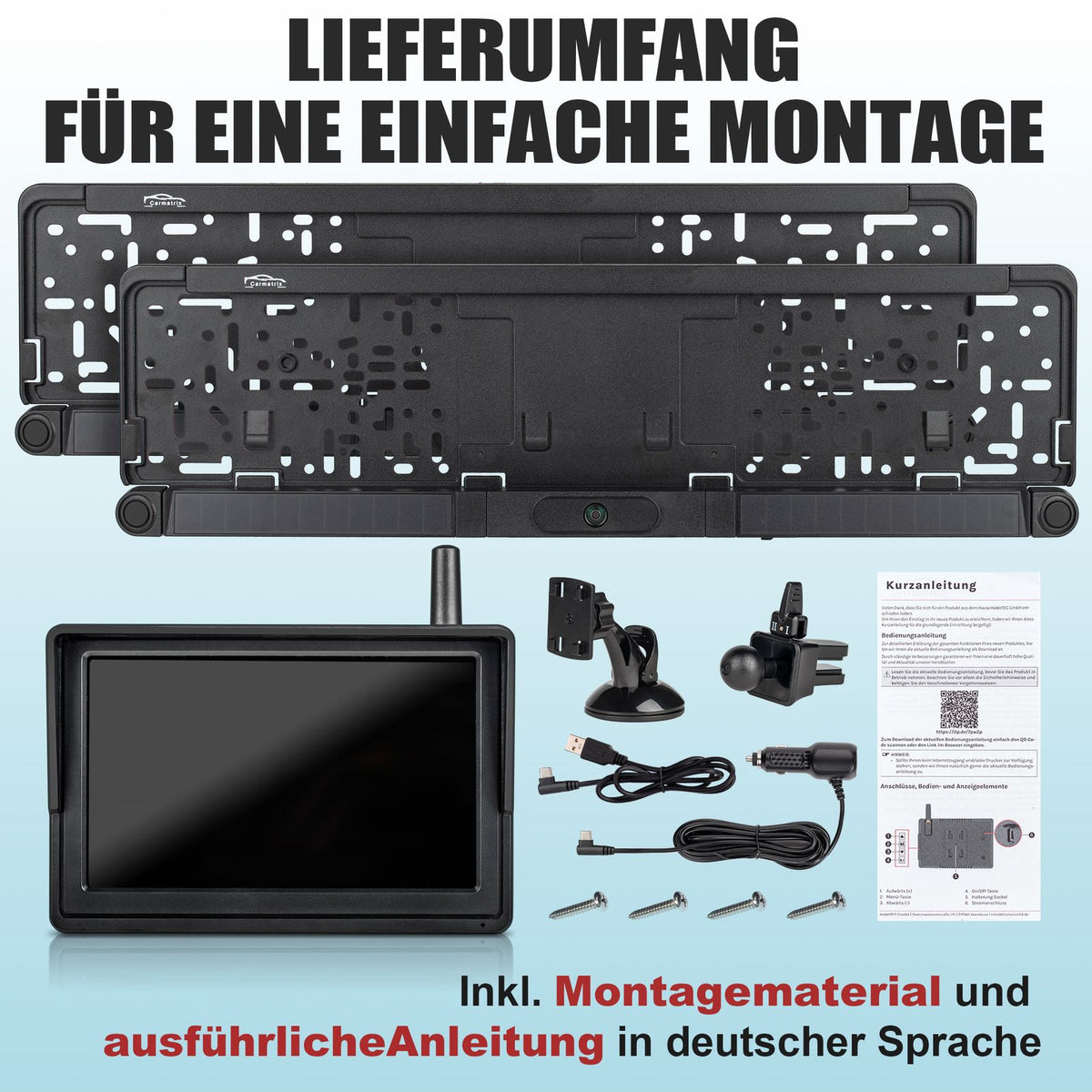

Scope of delivery:

1x IPS-HD monitor
2x HD reversing camera in license plate holder and 2 PDC sensors
1x clamp holder
1x suction cup holder
1x power supply unit for cigarette lighter
1x USB charging cable
8x screws for license plate holder
1 x Quick guide in German
